DP191-089-CH-1E - Datasheet
NoCor
Category Information

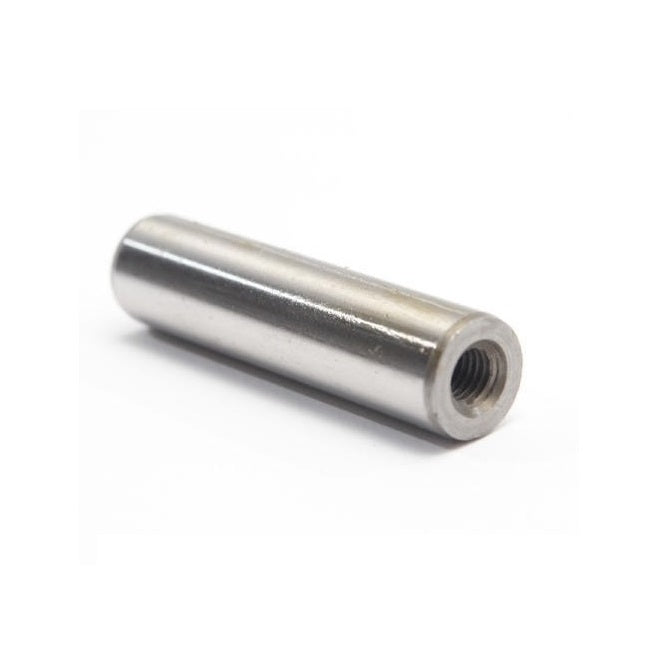

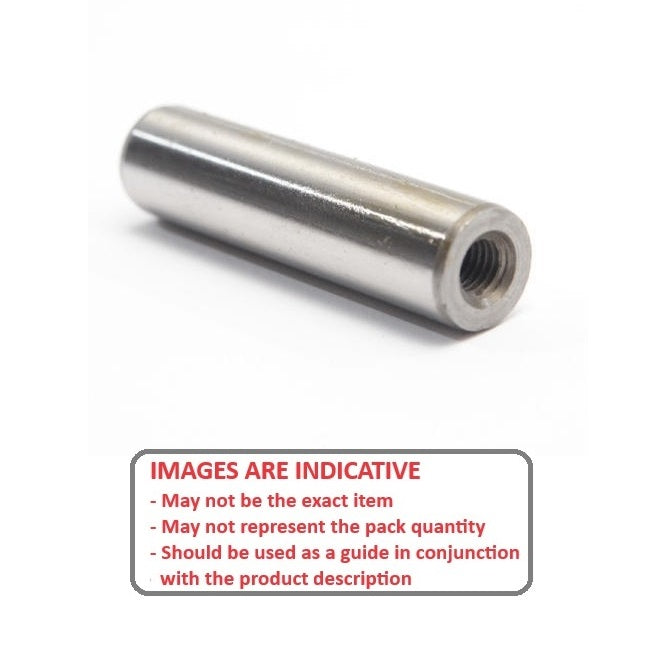

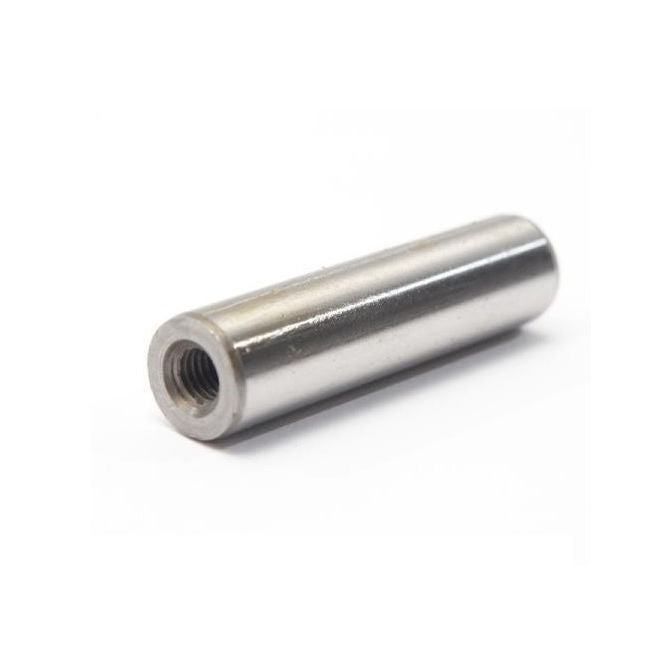

Pins - Dowel - Extractable - Carbon SteelCarbon Steel Extractable Dowel Pins. Hardened and Ground Steel 100 Cr6. Din 7979.
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
- Hardness 55-62 HRC, HV550-650
- Extractable pins may or may not have a flat to vent pressure when pulling
Product Data

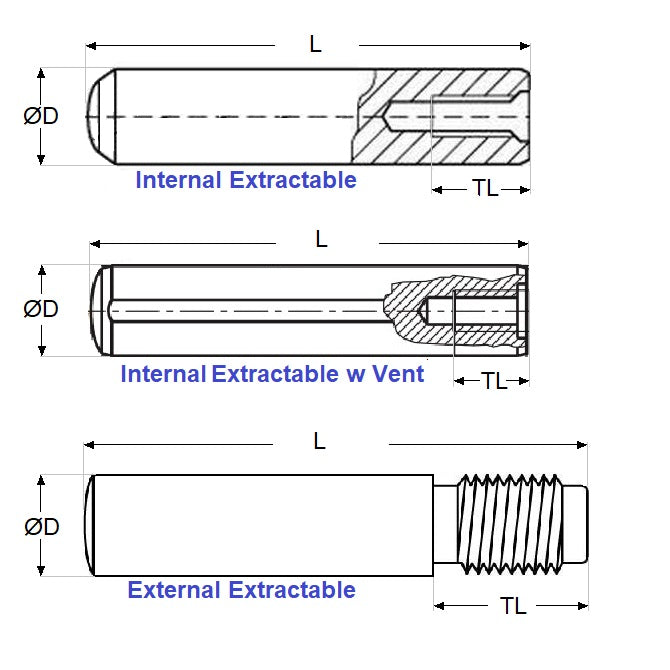

- Diameter (D)
:
19.050
mm
+ 0.008 / + 0.021
(Equiv. 0.75 in.) - Length (L)
88.90
mm
+/- 0.700
(Equiv. 3.5 in.) - Approx. Overall Length
88.90
mm
+/ - 0.700
(Equiv. 3.5 in.) - Type 1 (Chamfer One End)
- Thread Size 5/16-18
- DIN 6325
- Material Carbon Steel Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- PD-215
- PD215
