MB2-0019-127 - Datasheet
MBA
Category Information

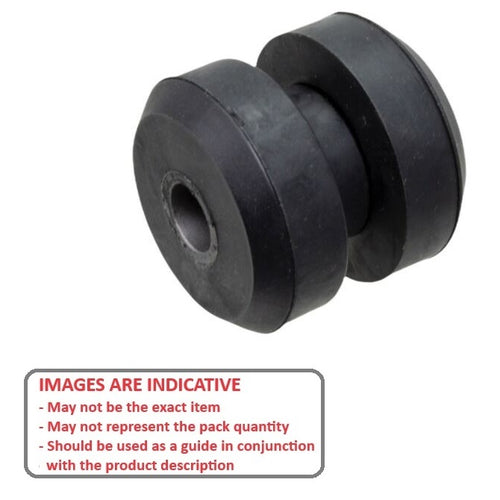

Mounts - Bonded - Tee Bush Two PieceTee Bush Two Piece Bonded Mounts. Steel insert overcoated with rubber joins the two pieces.
- An expanded range may be available on special order. Please enquire.
Product Data

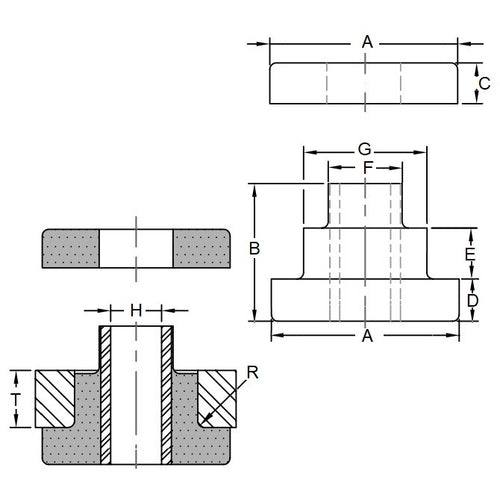

- Nominal Load rating : 127 Kg
- Bolt Hole Dia
16.7
mm
(Equiv. 0.657 in.) - Flange Dia (A)
64.8
mm
(Equiv. 2.551 in.) - Main Flange Width (D) 22.9 mm
- Support Flange Width (C) 22.9 mm
- Main Part Length (B) 62.2 mm
- Shoulder Length (E) 19.05 mm
- Insert Dia. (F) 24.6 mm
- Shoulder Dia. (G) 40.1 mm
- R 2.3 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- 9309K36
- VM1904
- VM-190-4
