CNG-01905-4 - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data

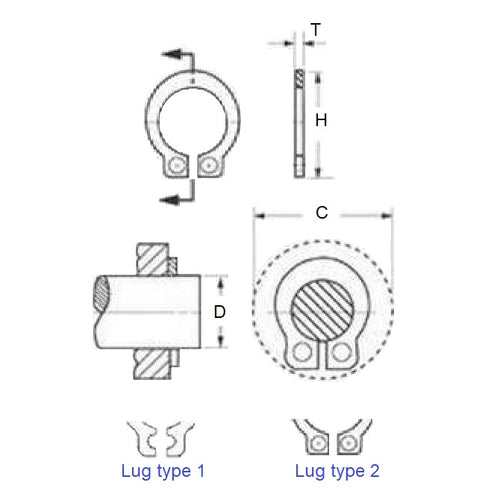

- Shaft Diameter (Ds)
:
19.05
mm
+/- 0.12
(Equiv. 0.75 in.) - Clip Thickness (T)
1.57
mm
(Equiv. 0.062 in.) - Approx. Loose Circlip ID (A) 17.90 mm
- Assemb. Clearance on Shaft (C) 33.53
- Allowable Load 264 N
- Lug Type 2 (Closed) mm
- Tool PRS-E070-X
- Material Stainless Steel AISI 420C
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-075-SS
- SHF075SS
