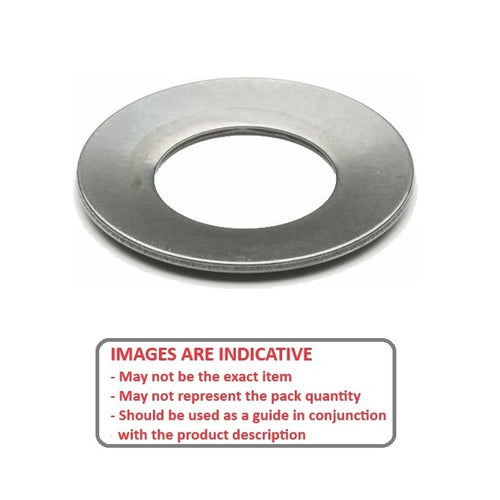

Washers - Disc Spring - Standard - Stainless SteelStainless Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093 and belleville washers to DIN 6796.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data

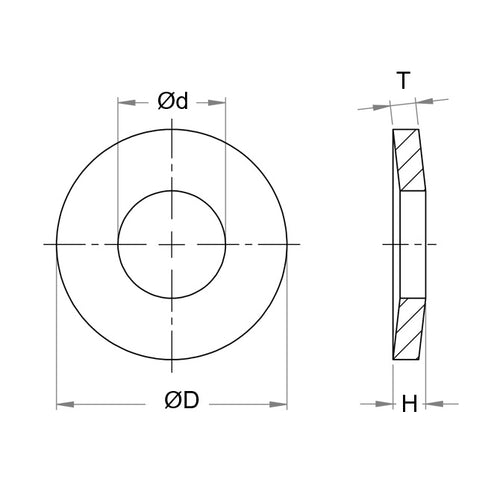

- Nominal Outside Diameter (A)
:
18.00
mm
(Equiv. 0.709 in.) - Nominal Inside Diameter (B)
8.00
mm
+ 0.20 / - 0.00
(Equiv. 0.315 in.) - Stock Thickness (C)
0.80
mm
(Equiv. 0.031 in.) - Loaded Height (L1) 0.38 mm
- Load at 0.75 Height 84.82 Kg
- Free Height (E) 1.30 mm
- Actual ID (Ref) 8.2 mm
- Inside Height (D) 0.51 mm
- Material Stainless Steel 17-7 PH
Product Compliance and Data
Additional Resources
Cross References
- WASCA DS180808SS
- BDA455
- BDA-455
