RR-712 - Datasheet

MBA

Category Information

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Product Data

  • Housing Bore (B) : 180.98 mm
    (Equiv. 7.125 in.)
  • Clip Thickness (T) 2.19 mm +/- 0.11
    (Equiv. 0.086 in.)
  • Groove Dia. (Dg) 185.86 mm
    (Equiv. 7.317 in.)
  • Approx. Loose Circlip OD (Dr) 188.94 mm + 1.40 / - 0.00
  • Radial Wall (S) 7.93 mm +/- 0.16
  • Groove Width (W) 2.47 mm +/- 0.20
  • Approx. Loose Clip ID 173.08 +/- 0.08
  • Groove Depth (d) 2.44
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring AI-712
  • Smalley WH-712
  • Spirolox WH-712
  • WH712
  • AI712
View full details

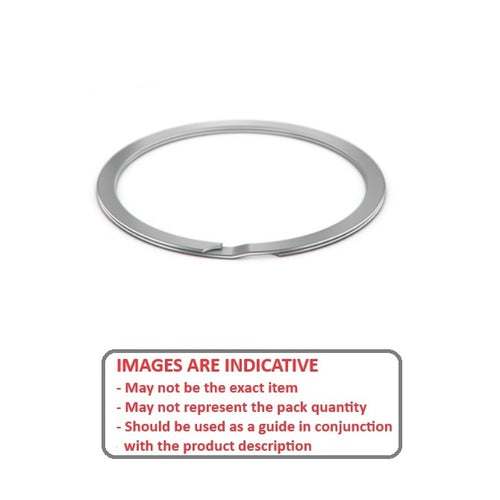

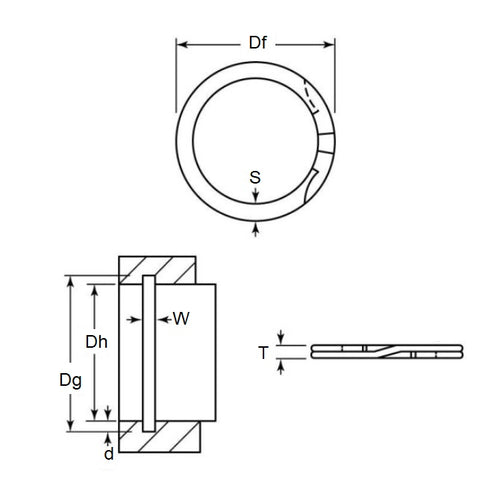

RR-712DiagramRR-712Image
