CCE-01700-C-V - Datasheet
MBA
Category Information

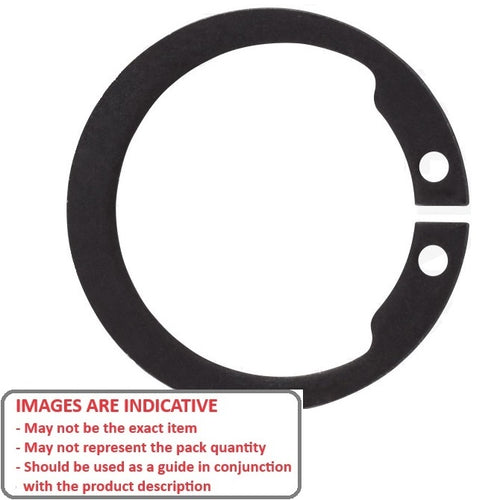

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.

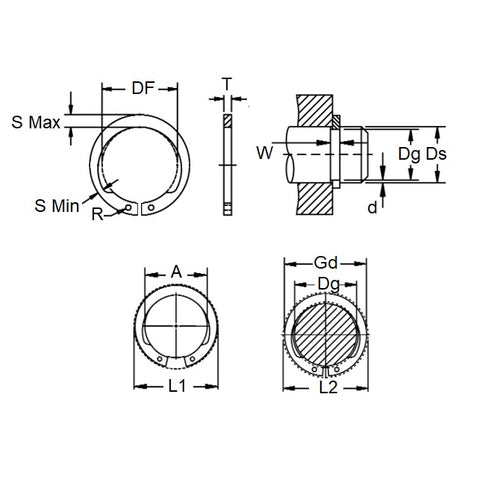

Product Data
- Shaft Diameter (Ds)
:
17.00
mm
(Equiv. 0.669 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.) - Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.06
(Equiv. 0.638 in.) - Approx. Loose Circlip ID (A) 15.70 mm
- Radial Wall (S) min/max 2.40 mm
- Groove Width (W) 1.10 mm
- Tool PRS-E009
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHI-017
- DSHI017
- M14080170
- M1408-0170
