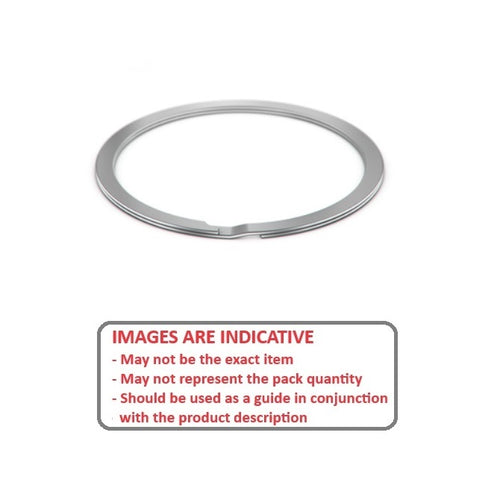

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 177.80 mm
    (Equiv. 7 in.)
  • Clip Thickness (T) 2.19 mm +/- 0.11
    (Equiv. 0.086 in.)
  • Groove Dia. (Dg) 173.18 mm
    (Equiv. 6.818 in.)
  • Approx. Loose Circlip ID (A) 167.13 mm + 0.00 / - 1.52
  • Radial Wall (S) min/max 7.93 mm +/- 0.16
  • Groove Width (W) 2.47 mm +/- 0.20
  • Approx. Loose Clip OD 182.99 +/- 0.08
  • Groove Depth (d) 2.31
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Smalley WS-700
  • WS700
View full details

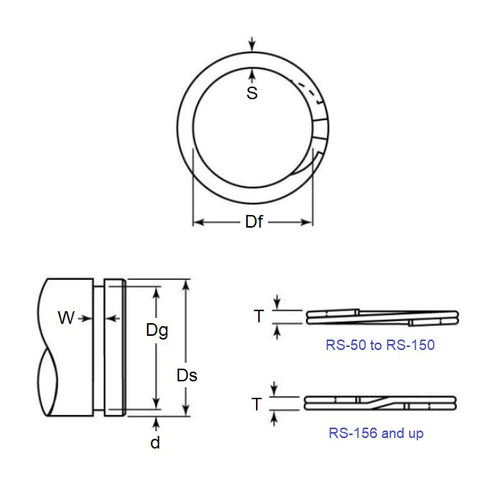

RS-700DiagramRS-700Image
