CCE-17145-CZY - Datasheet

MBA

Category Information

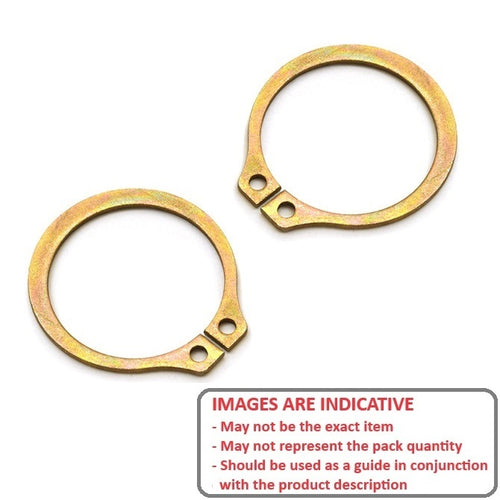

Retaining Rings - External - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Zinc plated carbon steel

Product Data

  • Shaft Diameter (Ds) : 171.45 mm
    (Equiv. 6.75 in.)
  • Clip Thickness (T) 3.96 mm +/- 0.204
    (Equiv. 0.156 in.)
  • Groove Dia. (Dg) 164.20 mm +/- 0.127
    (Equiv. 6.465 in.)
  • Approx. Loose Circlip ID (A) 160.90 mm
  • Groove Width (W) 4.40 mm
  • Standard MIL-16624
  • Material Carbon Steel Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-675-ZD
  • N14000675AZD
  • N1400-0675AZD
  • SH675ZD
