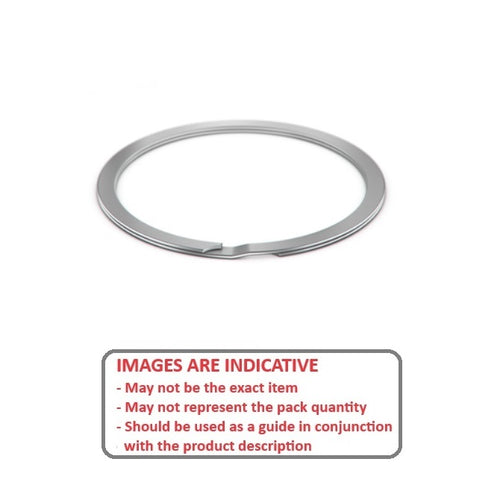

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Product Data

  • Housing Bore (B) : 17.45 mm
    (Equiv. 0.687 in.)
  • Clip Thickness (T) 0.64 mm +/- 0.06
    (Equiv. 0.025 in.)
  • Groove Dia. (Dg) 18.11 mm
    (Equiv. 0.713 in.)
  • Approx. Loose Circlip OD (Dr) 18.22 mm + 0.33 / - 0.00
  • Radial Wall (S) 1.14 mm +/- 0.10
  • Groove Width (W) 0.80 mm +/- 0.05
  • Approx. Loose Clip ID 15.94 +/- 0.04
  • Groove Depth (d) 0.41
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring AI-068
  • Smalley WH-068
  • Spirolox WH-068
  • WH068
  • AI068
View full details

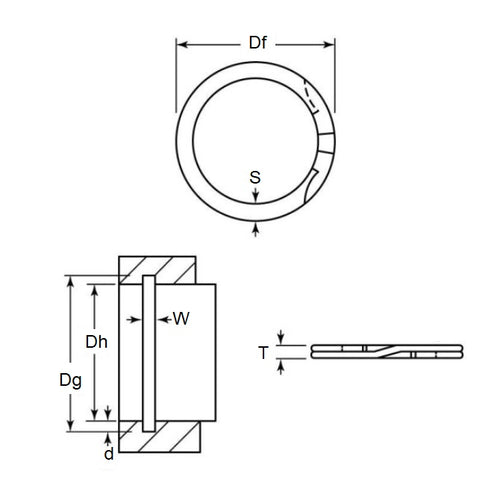

RR-068DiagramRR-068Image
