CCI-01600-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

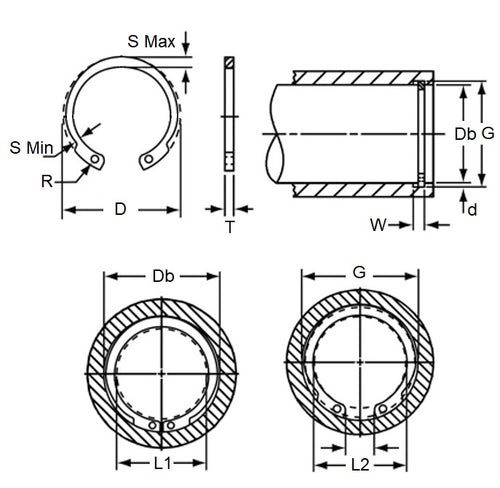

Product Data
- Housing Bore (B)
:
16.00
mm
(Equiv. 0.63 in.) - Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.) - Groove Dia. (Dg)
16.80
mm
+ 0.00 / - 0.06
(Equiv. 0.661 in.) - Approx. Loose Circlip OD (Dr) 17.30 mm + 0.42 / - 0.13
- Radial Wall Max (S) 2.0 - 2.1
- Groove Width (W) 1.10 mm
- Tool PRS-I011
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-016
- Ellison INTV-016
- Seeger JV-016
- NoCor MDHOI-016
- NoCor MDHOI-0160
- MDHOI0160
- JV016
- INTV016
- M1308016
- M1308-016
- M13080160
- M1308-0160
- BN830016
