Category Information

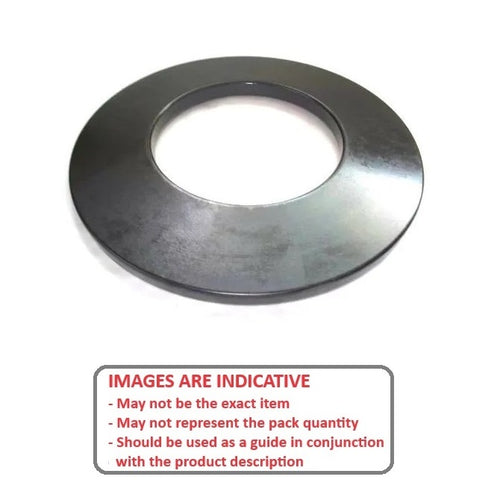

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data

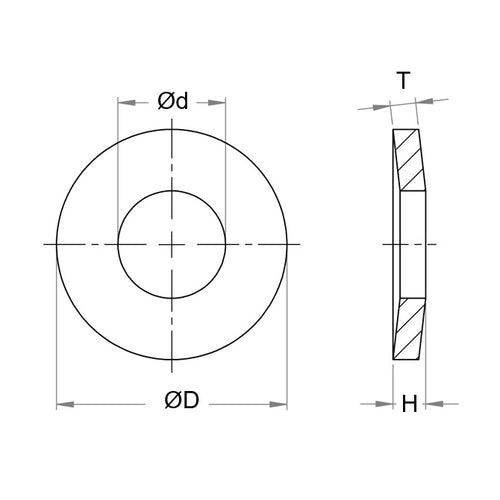

- Nominal Outside Diameter (A)
:
160.00
mm
+ 0.00 / - 0.15
(Equiv. 6.299 in.) - Nominal Inside Diameter (B)
8.20
mm
+ 0.15 / - 0.00
(Equiv. 0.323 in.) - Stock Thickness (C)
0.600
mm
(Equiv. 0.024 in.) - Load at L1 411.00 kg
- Free Height (E) 1.05 mm
- Inside Height (D) 0.45 mm
- Material Carbon Spring Steel 50CrVA
Product Compliance and Data
Additional Resources
Cross References
- W0082D016006C
