CCI-01588-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

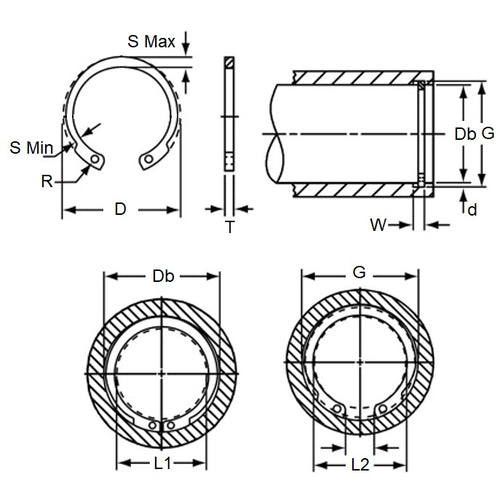

Product Data
- Housing Bore (B)
:
15.88
mm
(Equiv. 0.625 in.) - Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.) - Groove Dia. (Dg)
16.89
mm
+/- 0.052
(Equiv. 0.665 in.) - Approx. Loose Circlip OD (Dr) 17.63 mm
- Radial Wall Max (S) 0.91 - 1.83
- Groove Width (W) 0.74 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A299
- NoCor HOI-062
- HOI062
- N13080062
- N1308-0062
