PFL-XL-013-A - Datasheet
MBA
Category Information

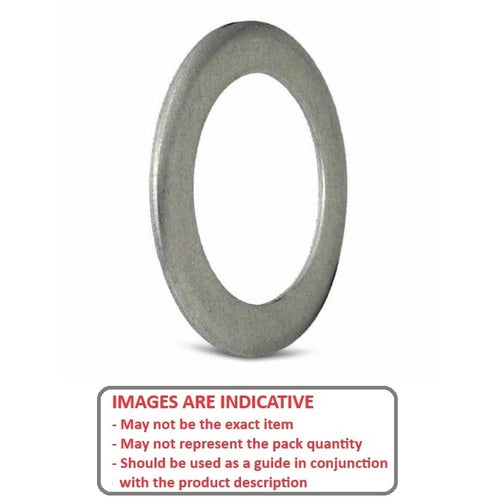

Pulley Flanges - Timing - Suit 5.080mm XL Series - AluminiumAluminium Suit 5.080mm XL Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data

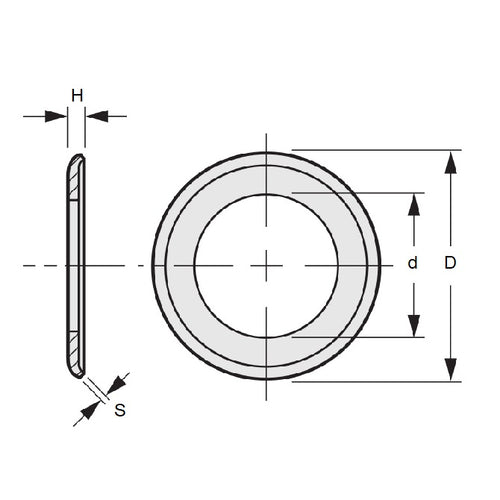

- Inside Diameter (d)
:
15.880
mm
(Equiv. 0.625 in.) - Outside Diameter (D)
27.00
mm
(Equiv. 1.063 in.) - Suits Pulley Grooves 13 No.
- Width (H) 1.65 mm
- Thickness (S) 1.02 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 13XL-FA
- 13XLFA
- A6A213FA
- A6A2-13FA
