W0070-D-014-005-C - Datasheet
MBA
Category Information

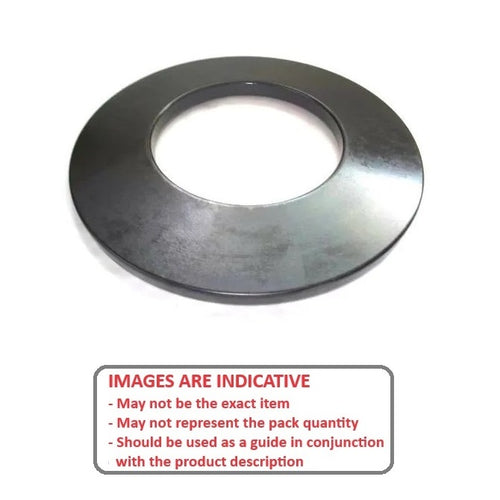

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.

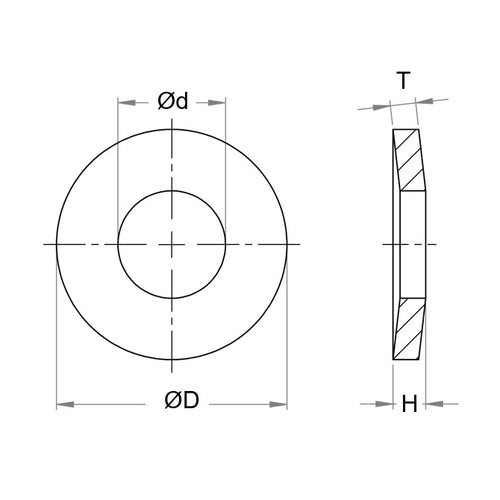

Product Data
- Nominal Outside Diameter (A)
:
14.00
mm
(Equiv. 0.551 in.) - Nominal Inside Diameter (B)
7.00
mm
+ 0.20 / - 0.00
(Equiv. 0.276 in.) - Stock Thickness (C)
0.50
mm
(Equiv. 0.02 in.) - Loaded Height (L1) 0.60 mm
- Load at L1 28.0 kg
- Free Height (E) 0.90 mm
- Actual ID (Ref) 7.2 mm
- Inside Height (D) 0.40 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 96445K226
- WASCA DS140705
- BDA25
- BDA-25
- S4230
