ECL-0120-0130-S15 - Datasheet
MBA
Category Information

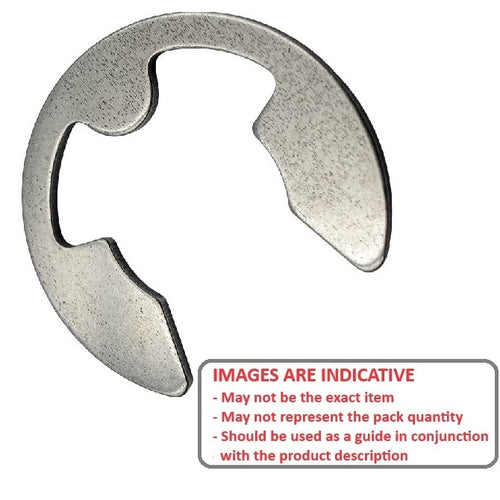

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

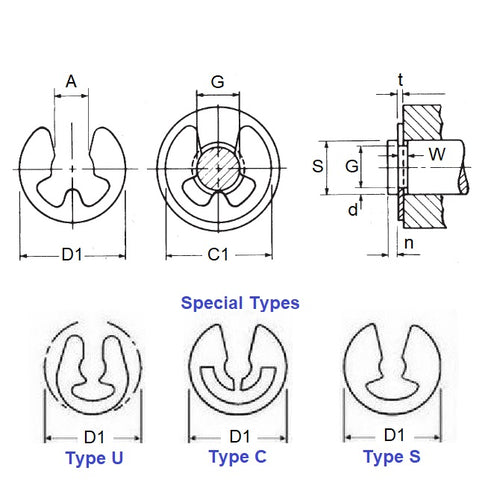

Product Data
- Minimum Rec. Shaft Dia (S)
:
13.00
mm
+ 5.00 / - 0.00
(Equiv. 0.512 in.) - Groove Dia. (Dg)
12.00
mm
+ 0.00 / - 0.11
(Equiv. 0.472 in.) - Clip Thickness (T)
1.30
mm
+/ - 0.03
(Equiv. 0.051 in.) - Clip OD Loose (D1) 22.65 mm
- Groove Width (W) 1.35 mm
- Maximum Rec. Shaft Dia (S) 18.00
- Clip OD in groove (C1) 23.40 mm
- Loose Clip ID (A) 10.45 mm
- Min. Extension (n) 2.50
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 98317A237
- NoCor DE-120-SS
- Small Parts MERE-12
- MERE12
- 1500-0120DSF
- 15000120DSF
- D1500-0120DSF
- D15000120DSF
- DE120SS
