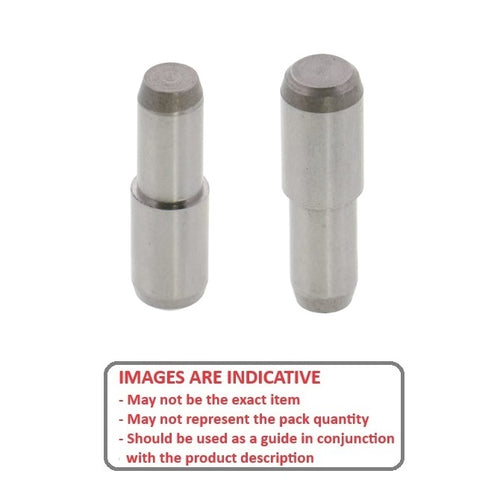

Pins - Dowel - Stepped - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Stepped Dowel Pins. Precision Dowel Pins with a Step
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Product Data
- Diameter (D)
:
13.000
mm
+ 0.005 / + 0.010
(Equiv. 0.512 in.) - Length (L)
55.00
mm
+ 0.005 / + 0.010
(Equiv. 2.165 in.) - Approx. Overall Length
55.00
mm

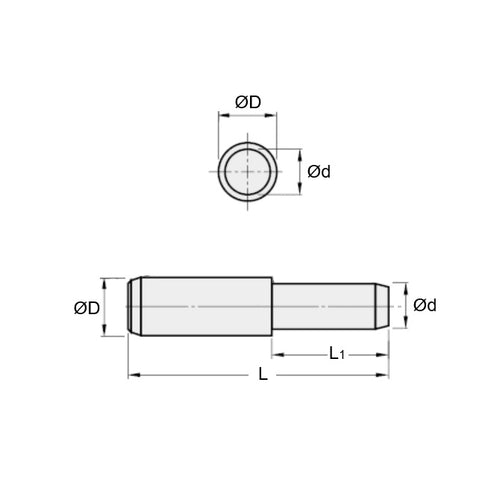

(Equiv. 2.165 in.) - Type 2 (Chamfer Both Ends)
- Step Diameter (d) 10.000 mm
- Step Length (L1) 25.00 mm
- ISO 2338
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSFW13-55
- MSFW1355
