ED1RS - Datasheet

ACE

Category Information

Shock Absorbers - Small Hydraulic Adjustable

Small Hydraulic Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 12.7 mm
      (Equiv. 0.5 in.)
    • Thread (C) 3/4-16 UNF
    • Type Standard
    • Length (A/F) 110.49 / 84.07 mm
    • Shaft Diameter (D) 5 mm
    • Max. Shock Force 352 KG
    • Max. Propelling Force 68 KG
    • Nom. Coil Spring Force Exten 1 KG
    • Nom. Coil Spring Force Compres 1 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-1
      • ED1
      View full details

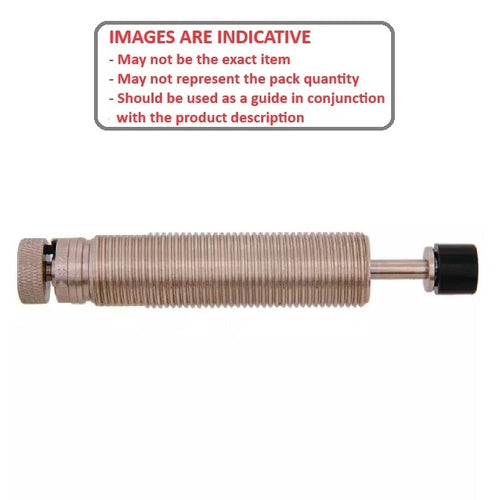

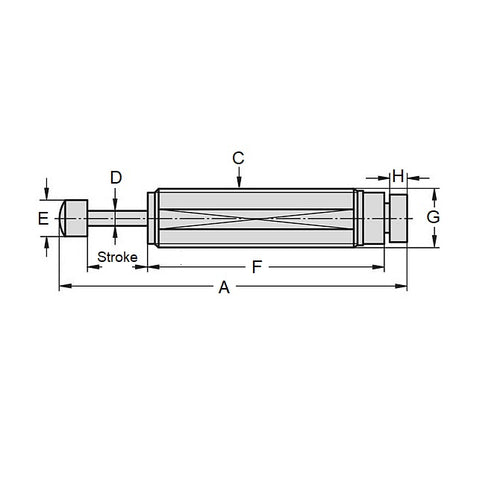

      ED1RSDiagramED1RSImage
