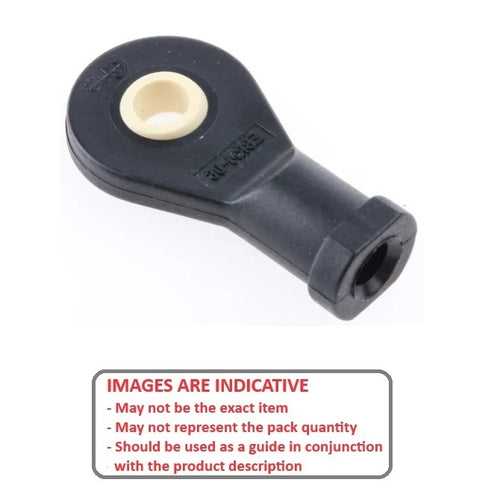

Rod Ends - Female - PlasticPlastic Female Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

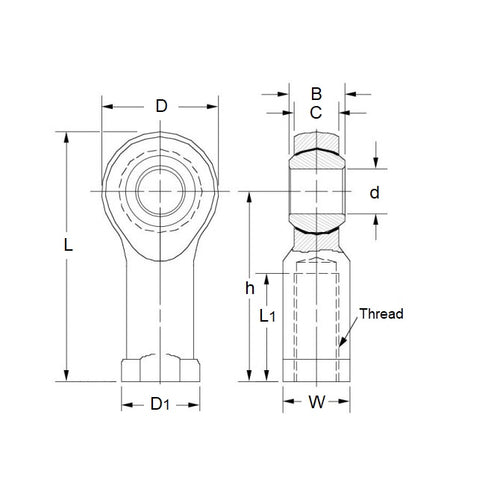

Product Data
- Eye Size (d1)
:
12.000
mm
(Equiv. 0.472 in.) - Overall Length (L)
67.00
mm
(Equiv. 2.638 in.) - Thread Size M12x1.25 Right
- Thread Length (l2) 22.00 mm
- Head Width (W) 16.00 mm
- Eye Width (W1) 12.00 mm
- Head Diameter (D1) 34.00 mm
- Centre Height (l1) 50.00 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 35.00 n.m
- Body Width/Flange Width(W2/D3) 18.00 / 22.00 mm
- Material Plastic
