MLM-160M-168-CNY-2LH - Datasheet
MBA
Category Information

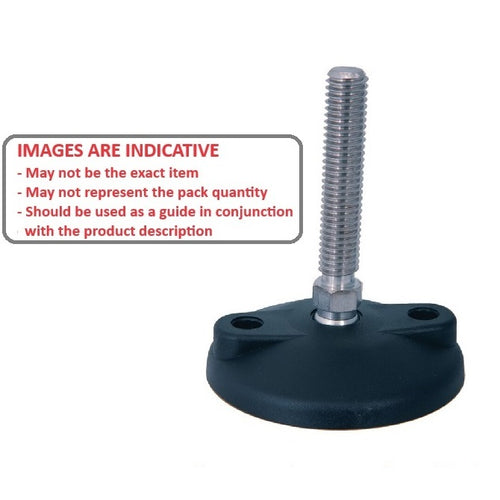

Mounts - Levelling Studded - Light Duty - Nylon - With Lag HolesWith Lag Holes Nylon Light Duty Levelling Studded Mounts. Levelling adjusters. Steel and stainless steel threads.
- An expanded range may be available on special order. Please enquire.

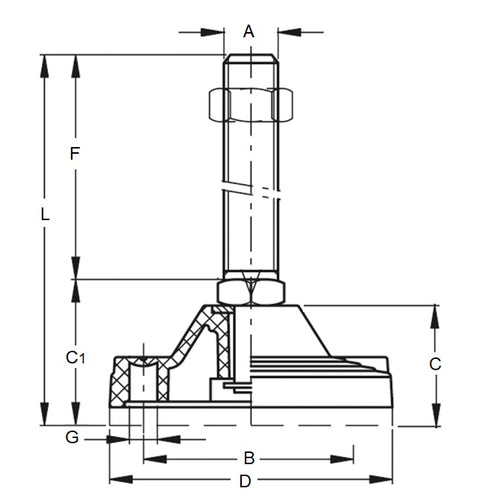

Product Data
- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
97.8
mm
(Equiv. 3.85 in.) - Foot Height (C)
18.3
mm
(Equiv. 0.72 in.) - Thread Length (F) 168.0 mm
- Base Height (C) 29.97 mm
- Overall Height (L) 186.3 mm
- Load Rating 1180 Kg
- Swivel Angle 20 °
- Lag Hole Diameter 12.192 mm
- Distance Between Lags 73.91 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RL1416P
- RL-1416-P
- MLM1180M16LNC2
- MLM0198M16NC2
