CIB-11430-C - Datasheet
MBA
Category Information

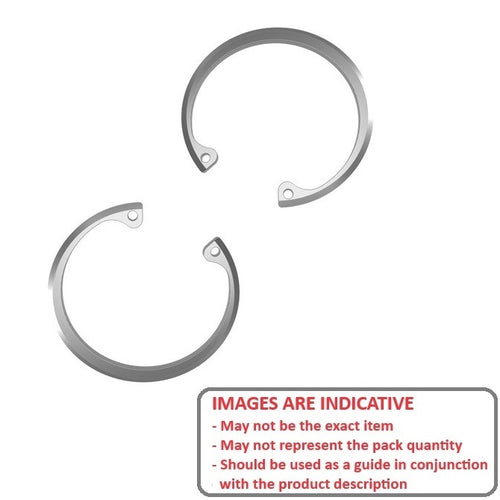

Retaining Rings - Internal - Circlips - BevelledBevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.

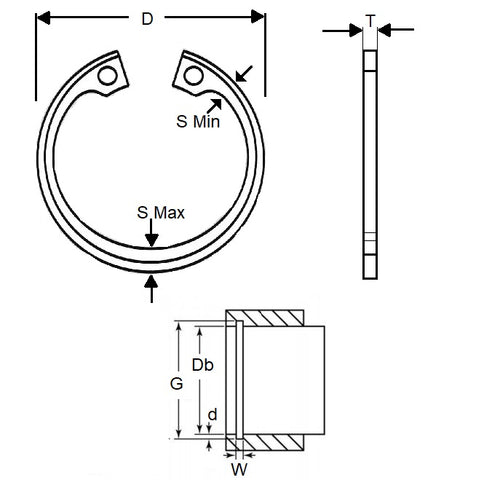

Product Data
- Housing Bore (B)
:
114.30
mm
(Equiv. 4.5 in.) - Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(Equiv. 0.106 in.) - Groove Dia. (Dg)
122.53
mm
+/- 0.08
(Equiv. 4.824 in.) - Approx. Loose Circlip OD (Dr) 123.83 mm + 3.30 / - 0.00
- Radial Wall (S) min/max 4.60 - 8.92
- Groove Width (W) 2.26 mm + 0.05 / - 0.00
- Tool PRR-I120-X
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor VHO-450
- VHO450
- N13020450
- N1302-0450
