CCE-01191-CZY - Datasheet
MBA
Category Information

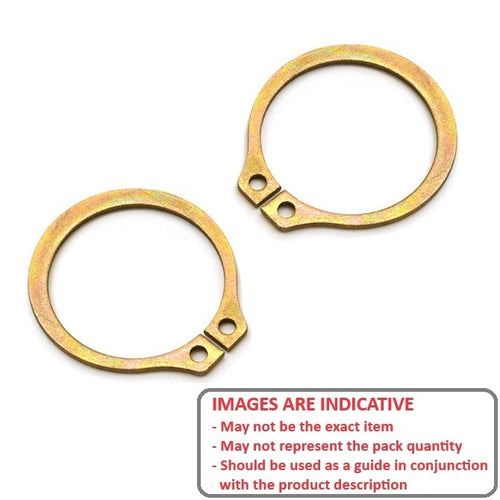

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
11.91
mm
(Equiv. 0.469 in.) - Clip Thickness (T)
0.64
mm
+/- 0.051
(Equiv. 0.025 in.) - Groove Dia. (Dg)
11.30
mm
+/- 0.051
(Equiv. 0.445 in.) - Approx. Loose Circlip ID (A) 10.87 mm
- Groove Width (W) 0.74 mm
- Clearance on Shaft (C1) 17.27 mm
- Clearance in Groove (C1) 16.76 mm
- Min. Extension (n) 1.07
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A123
- NoCor SH-046-ZD
- N14000046AZD
- N1400-0046AZD
- SH046ZD
