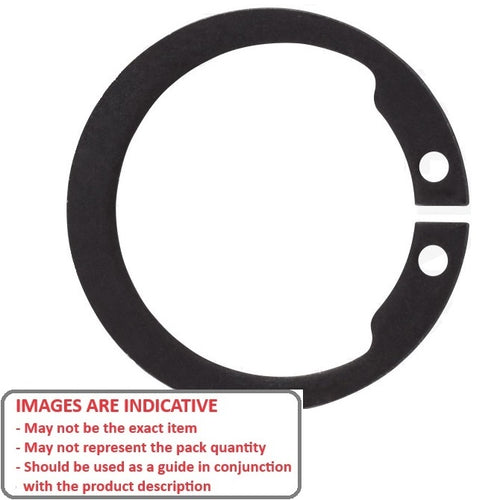

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data

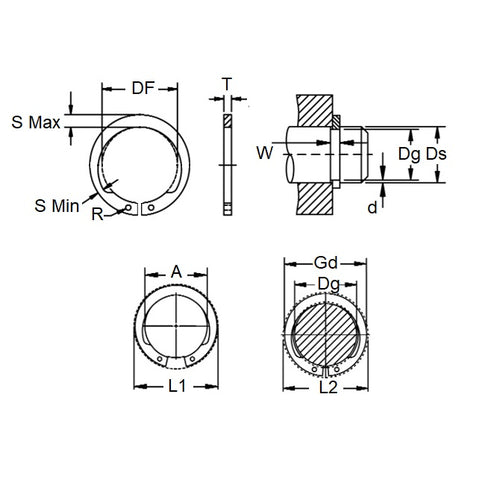

- Shaft Diameter (Ds)
:
101.60
mm
(Equiv. 4 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
96.32
mm
+/- 0.076
(Equiv. 3.792 in.) - Approx. Loose Circlip ID (A) 93.98 mm
- Radial Wall (S) min/max 4.70 mm
- Groove Width (W) 3.05 mm + 0.13 / - 0.00
- Tool PRS-E120-X
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90213A104
- NoCor SHI-400
- N14080400
- N1408-0400
- SHI400
