CCI-10160-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

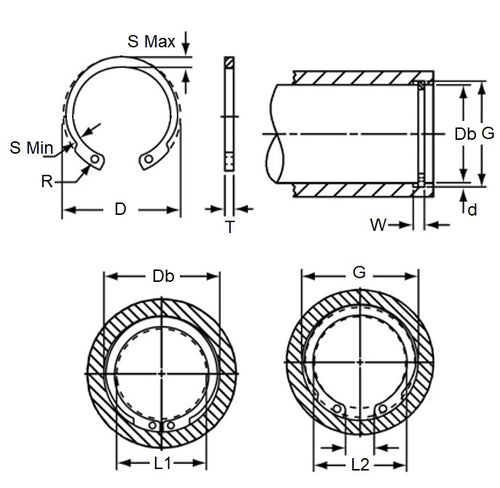

Product Data
- Housing Bore (B)
:
101.60
mm
(Equiv. 4 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
107.70
mm
+/- 0.076
(Equiv. 4.24 in.) - Approx. Loose Circlip OD (Dr) 112.37 mm
- Radial Wall Max (S) 4.09 - 8.59
- Groove Width (W) 3.05 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A295
- NoCor HOI-400
- HOI400
- N13080400
- N1308-0400
