PFL-MXL-020-A - Datasheet
MBA
Category Information

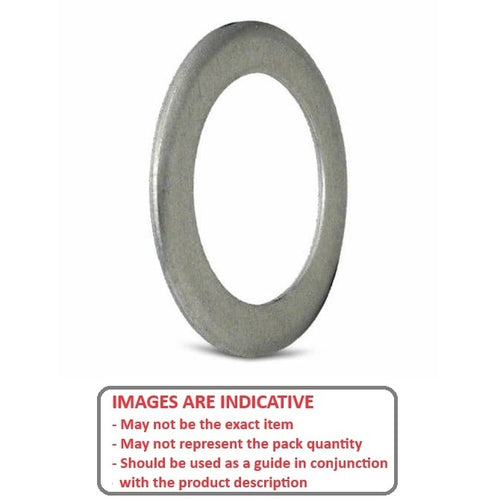

Pulley Flanges - Timing - Suit 2.032mm MXL and 40DP SeriesSuit 2.032mm MXL and 40DP Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.

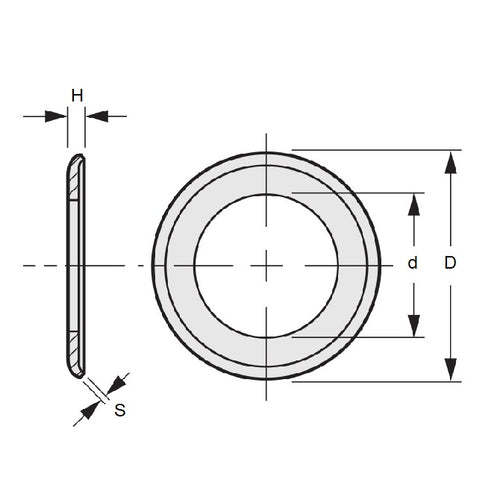

Product Data
- Inside Diameter (d)
:
10.820
mm
(Equiv. 0.426 in.) - Outside Diameter (D)
17.40
mm
(Equiv. 0.685 in.) - Suits Pulley Grooves 20 No.
- Width (H) 1.32 mm
- Thickness (S) 0.81 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 20MP-FA
- 20MPFA
- A6A5M020FA
- A6A5-020FA
- A6A5020FA
