DPS100-035-CH-1 - Datasheet
NoCor
Category Information

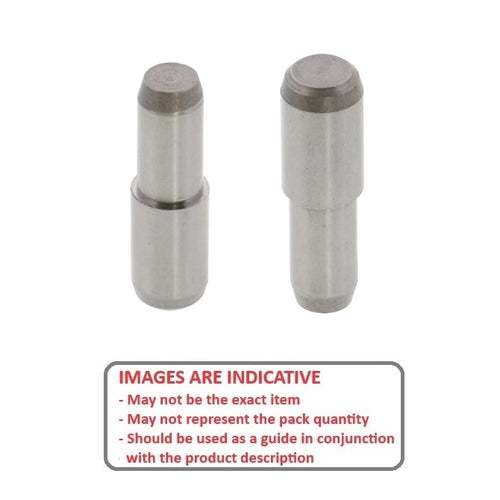

Pins - Dowel - Stepped - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Stepped Dowel Pins. Precision Dowel Pins with a Step
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Product Data
- Diameter (D)
:
10.000
mm
+ 0.005 / + 0.010
(Equiv. 0.394 in.) - Length (L)
35.00
mm
+ 0.005 / + 0.010
(Equiv. 1.378 in.) - Approx. Overall Length
35.00
mm

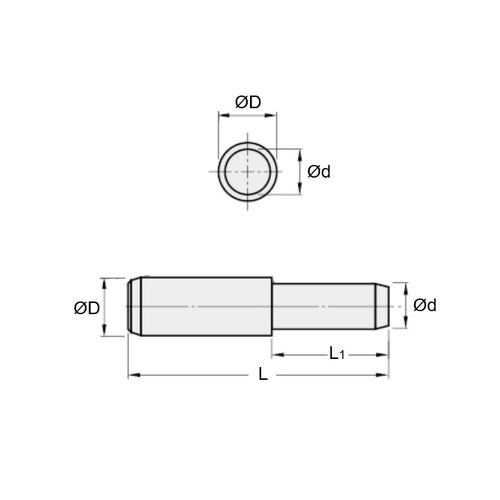

(Equiv. 1.378 in.) - Type 2 (Chamfer Both Ends)
- Step Diameter (d) 8.000 mm
- Step Length (L1) 15.00 mm
- ISO 2338
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSFW10-35
- MSFW1035
