CNG-01000-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

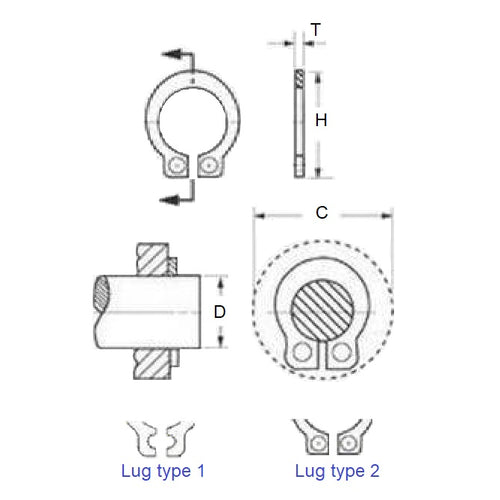

Product Data
- Shaft Diameter (Ds)
:
10.00
mm
+/- 0.08
(Equiv. 0.394 in.) - Clip Thickness (T)
1.20
mm
(Equiv. 0.047 in.) - Approx. Loose Circlip ID (A) 9.65 mm
- Assemb. Clearance on Shaft (C) 19.65
- Allowable Load 245 N
- Lug Type 1 (Open) mm
- Tool PRS-ZGG2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHX-010
- DSHX010
- M14400100
- M1440-0100
