SFWR1-4B-ZZS-MC3 - Datasheet
MBA
Category Information

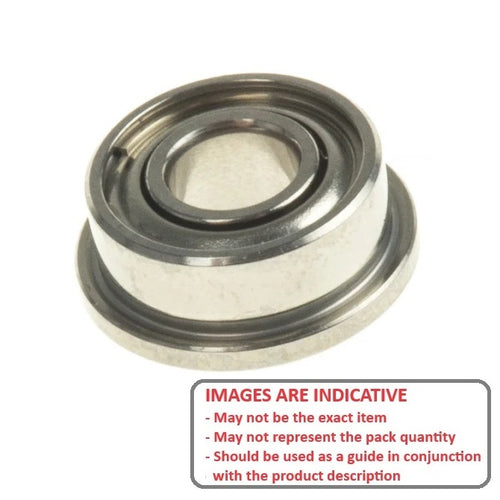

Bearings - Single Row Ball - Flanged - Precision - Extended InnerExtended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

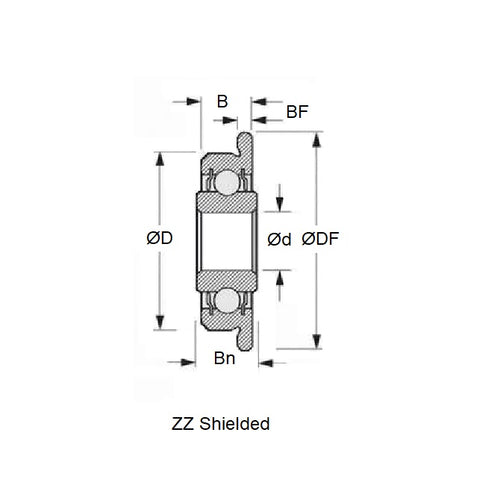

- ID (d)
:
1.984
mm
+ 0.000 / - 0.0075
(Equiv. 0.078 in.) - OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.) - Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.) - Inner Ring Width (Bn) 4.366 mm
- Flange Diameter (DF) 7.518 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial Flanged with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FWR1-4B
- Limiting Speed 67000
- Cage Type Standard
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.75 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K326
- Stainless Alternative FWR14BZZSMC3
- Stainless Alternative FWR1-4B-ZZS-MC3
- MPB S4FCHHE
- GRW SFE5-64-2Z
- ISO SFRW14ZZ
- ISO SFRW1-4-ZZ
- Shielded SFWR1 / 4
- NHBB SSFR1-4PPEE
- ADR WFLX5-64-ZZ
- WFLX564ZZ
- SSFR14PPEE
- SSR1F4ZZEE
- SSR1F-4-ZZEE
- SS-R1F-4-ZZEE
- SFWR1-4B-ZZSMC3
- SFE5642Z
- SFWR14BZZSMC3
- DDR1F-4-ZZEE
- DD-R1F-4-ZZEE
- DDR1F4ZZEE
- FWR1-4B Basic Size Ref
