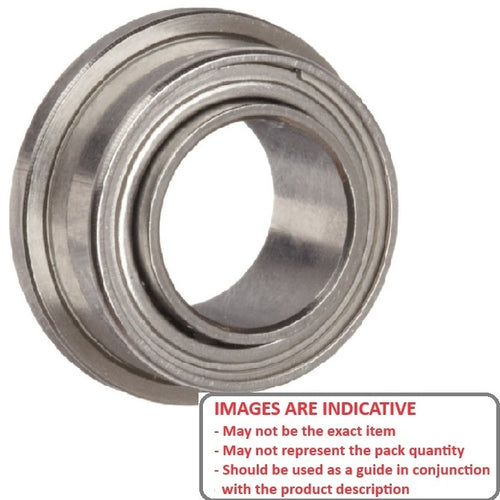

SFWR1B-ZZ-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Flanged - Precision - Extended InnerExtended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

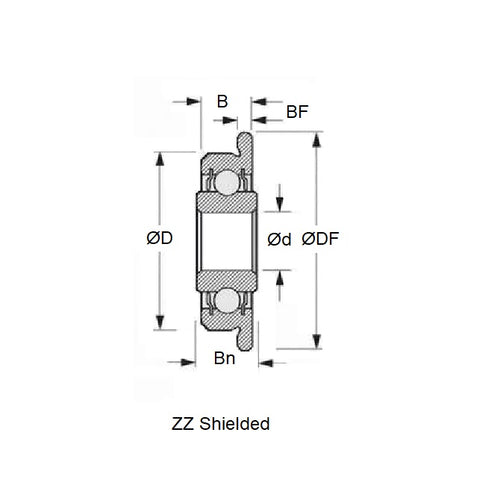

- ID (d)
:
1.397
mm
(Equiv. 0.055 in.) - OD (D)
4.763
mm
(Equiv. 0.188 in.) - Width (B)
2.779
mm
(Equiv. 0.109 in.) - Inner Ring Width (Bn) 3.571 mm
- Flange Diameter (DF) 5.944 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial Flanged with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FWR1B
- Limiting Speed 85500
- Cage Type Standard
- Static Load Rating KGf 6.6
- Dynamic Load Rating KGf 22.8
- Radii 0.10 mm
- Inner Shoulder (UI) 2.33mm
- Outer Shoulder (UO) 4.10 mm
- Number of Balls 6
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- MPB 3FCHHE
- Similar Part FLR1
- ADR FLR1-ZZ
- NHBB FR1PPEE
- Similar Part FRW1
- Similar Part RFE516
- FAG RFE516-ZZ
- MPB S3FCHHE
- BOCA SFR1-ZZEE4
- Shielded Width B SFWR1/2.779
- Shielded SFWR1B / 3
- NHBB SSFR1PPEE
- ADR WFLR1-ZZ
- RFE516ZZ
- R1F-3-ZZEE
- R1F3ZZEE
- FRW1ZZ
- FRW1-ZZ
- WFLR1ZZ
- SSR1F-3-ZZEE
- SS-R1F-3-ZZEE
- SSR1F3ZZEE
- SFR1ZZEE4
- DDR1F3ZZEE
- DD-R1F-3-ZZEE
- DDR1F-3-ZZEE
- FWR1B Basic Size Ref
