Y0953-095F-R-CZ - Datasheet

MBA

Category Information

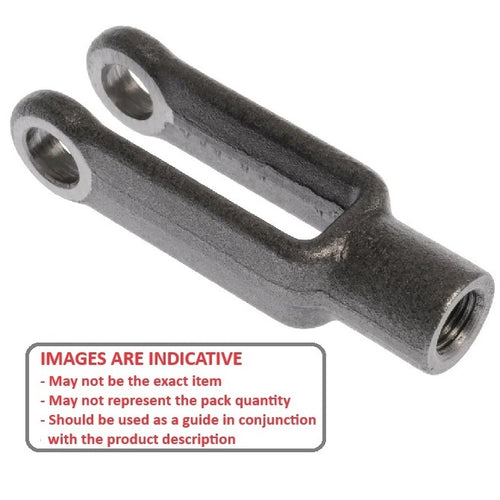

Yoke Ends - Threaded

Threaded Yoke Ends. Linkage connectors with threaded ends.

  • A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
  • It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
  • Yoke ends require a clevis pin and cotter pin for secure attachment.
  • Drop forged steel machined to SAE standards
  • Also see clevis joints

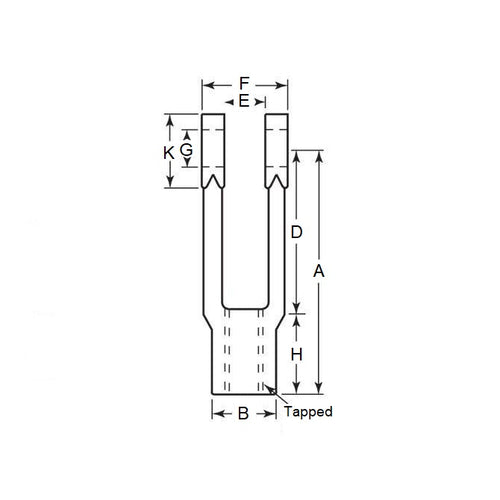

Product Data

  • Effective Length (A) : 63.50 mm
  • Body Diameter (B) 15.88 mm
  • Gap (E) +/- 0.38 11.13 mm
  • Width (F) +/- 0.38 22.23 mm
  • Hole Size (G) +0.25 9.525 mm
  • Thread Size 3/8-24 UNF
  • Thread Direction Right
Country of Origin: US
