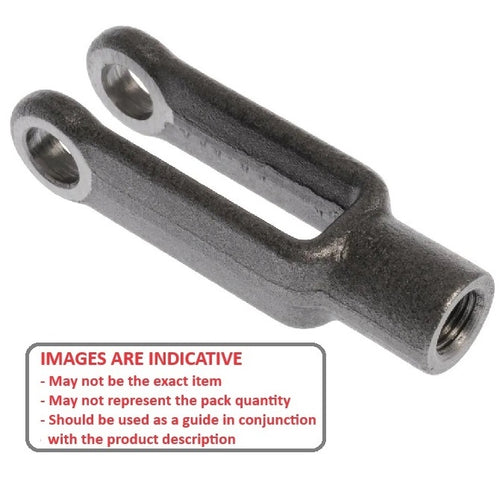

Y0953-095C-L-C - Datasheet
MBA
Category Information
Yoke Ends - ThreadedThreaded Yoke Ends. Linkage connectors with threaded ends.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints

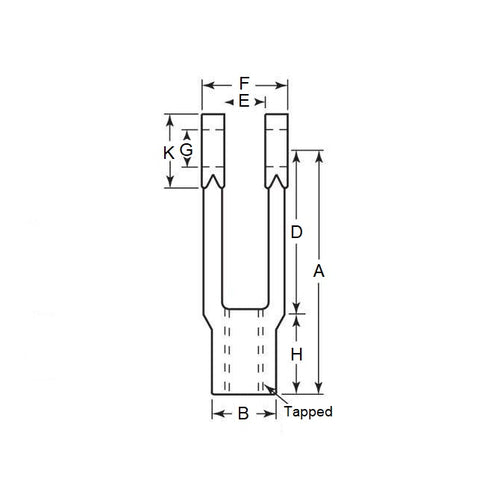

Product Data
- Effective Length (A)
:
63.50
mm
-0.00 / +0.10
(Equiv. 2.5 in.) - Body Diameter (B)
15.88
mm
-0.10 / +0.00
(Equiv. 0.625 in.) - Gap (E) +/- 0.38
11.13
mm
-0.12 / +0.00
(Equiv. 0.438 in.) - Width (F) +/- 0.38 22.23 mm
- Hole Size (G) +0.25 9.525 mm
- Thread Size 3/8-16 UNC
- Thread Direction Left
