Miniature Bearings Australia
Y0953-SLD-C-H - Datasheet
MBA
Category Information

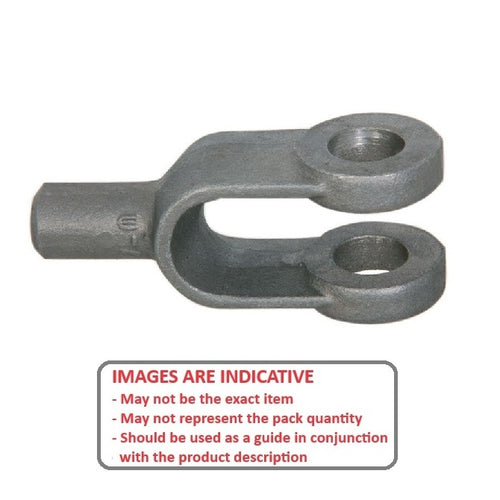

Yoke Ends - BlankBlank Yoke Ends. Linkage connectors with blank ends - no hole.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints
Product Data

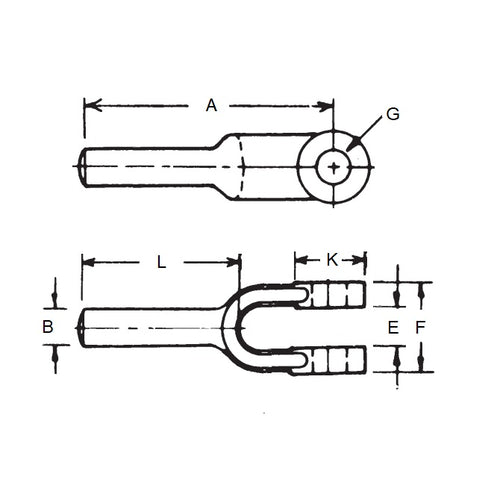

- Effective Length (A)
:
63.50
mm
-0.00 / +0.10
(Equiv. 2.5 in.) - Body Diameter (B)
15.88
mm
-0.10 / +0.00
(Equiv. 0.625 in.) - Gap (E) +/- 0.38
11.11
mm
-0.12 / +0.00
(Equiv. 0.437 in.) - Width (F) +/- 0.38 22.23 mm
- Hole Size (G) +0.25 9.525 mm
