Y0635-SLD-C-H - Datasheet
MBA
Category Information

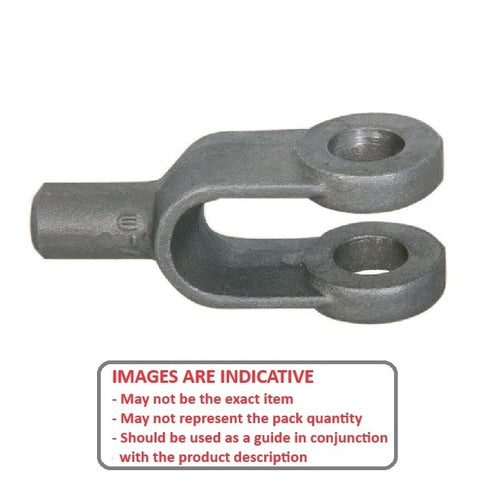

Yoke Ends - BlankBlank Yoke Ends. Linkage connectors with blank ends - no hole.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints

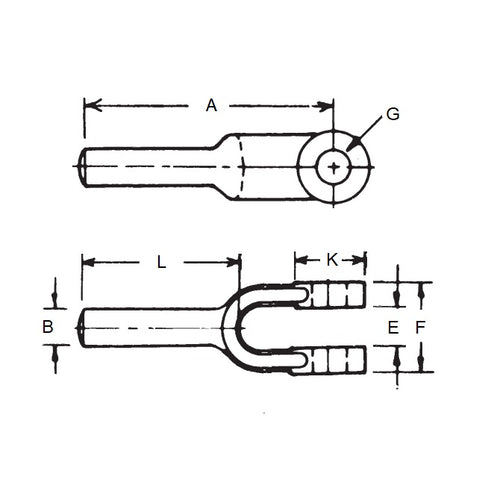

Product Data
- Effective Length (A) : 50.80 mm
- Body Diameter (B) 11.13 mm
- Gap (E) +/- 0.38 7.14 mm
- Width (F) +/- 0.38 15.88 mm
- Hole Size (G) +0.25 6.350 mm
