WRI-1250-RD - Datasheet

MBA

Category Information

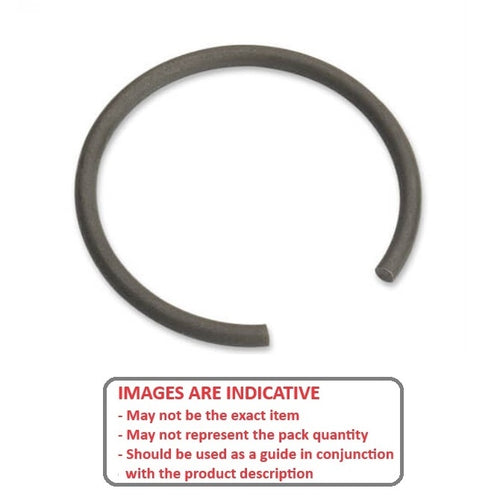

Retaining Rings - Internal - Round Wire

Round Wire Internal Retaining Rings. Includes DIN7993B / RB / M1700 / BN826. Retaining rings. Snap Rings (USA). Round section circlips.

  • An expanded range may be available on special order. Please enquire.
  • Round section wire rings are mostly used in semicircular grooves.
  • Applications include gear systems, automotive engineering and open gudgeon pins.

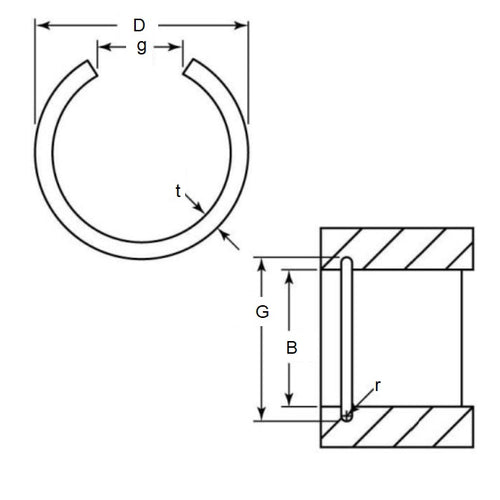

Product Data

  • Housing Bore (B) : 125.00 mm
    (Equiv. 4.921 in.)
  • Clip Thickness (T) 3.2 mm B DIN 2076
    (Equiv. 0.126 in.)
  • Groove Dia. (Dg) 128.20 mm + 1.2 / - 0.0
    (Equiv. 5.047 in.)
  • Approx. Loose Circlip OD (Dr) 129.20 mm
  • Groove Width (W) 3.60
  • Free Inside Diameter (D) 122.8
  • Info DIN7993
  • Section Profile Round Section
  • Groove Radius (r) 1.80 mm
  • Gap (g) 32.000 mm
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor DRB-125
  • AMC RB-125
  • Seeger RB-125
  • RB125
  • DRB125
