WRE-0056-RD-C - Datasheet
MBA
Category Information

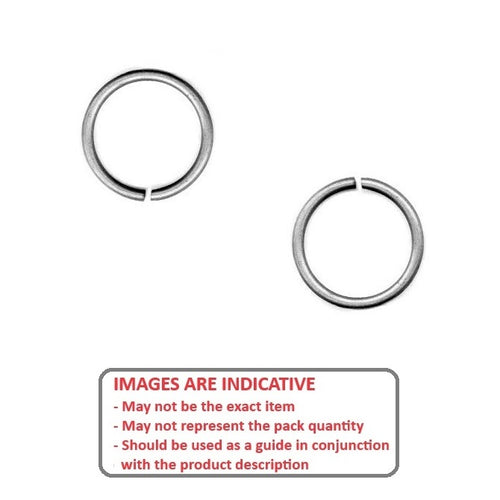

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

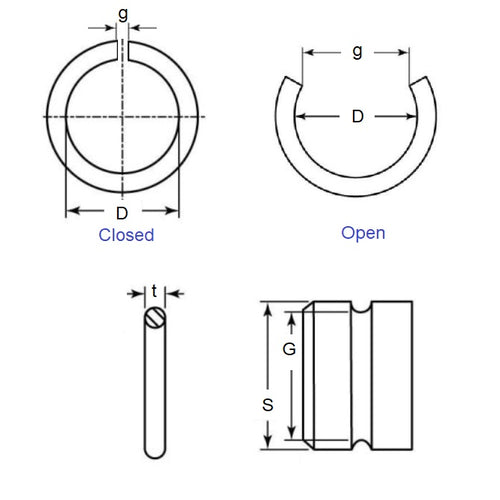

- Shaft Diameter (Ds)
:
5.56
mm
(Equiv. 0.219 in.) - Clip Thickness (T)
0.56
mm
+/- 0.10
(Equiv. 0.022 in.) - Groove Dia. (Dg)
5.21
mm
+ 0.08 / - 0.00
(Equiv. 0.205 in.) - Approx. Loose Circlip ID (A) 5.13 mm
- Radial Wall (S) min/max 5.21 mm
- Groove Width (W) 0.61 mm
- Free Outside Dia (Dr) 6.25
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-314
- Arcon XRC-314
- NoCor XRC-314
- A0900314
- A0900-314
- 100314
- XRC314
