WRE-0056-RD - Datasheet
MBA
Category Information

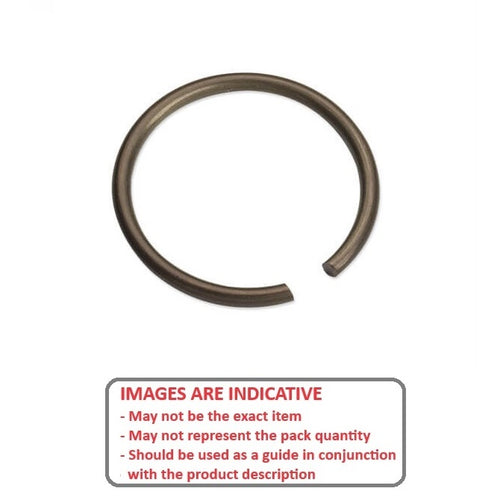

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

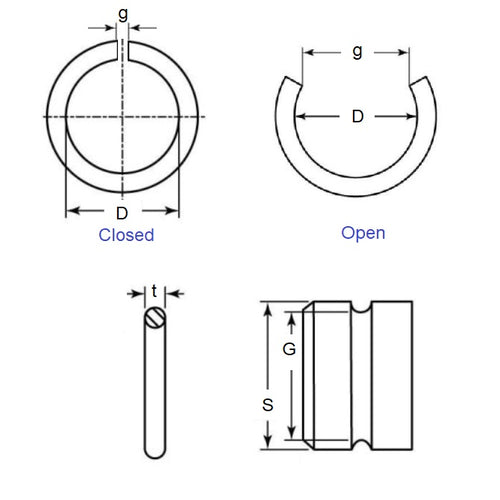

Product Data
- Shaft Diameter (Ds)
:
5.56
mm
(Equiv. 0.219 in.) - Clip Thickness (T)
0.38
mm
(Equiv. 0.015 in.) - Groove Dia. (Dg)
5.18
mm
(Equiv. 0.204 in.) - Approx. Loose Circlip ID (A) 5.03 mm
- Radial Wall (S) min/max 5.18 mm + 0.08 / - 0.00
- Groove Width (W) 0.38 mm + 0.08 / - 0.00
- Free Outside Dia (Dr) 5.79
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor A10-021
- A1000-021
- A10021
- A1000021
