WRE-0191-RD-HO - Datasheet
MBA
Category Information

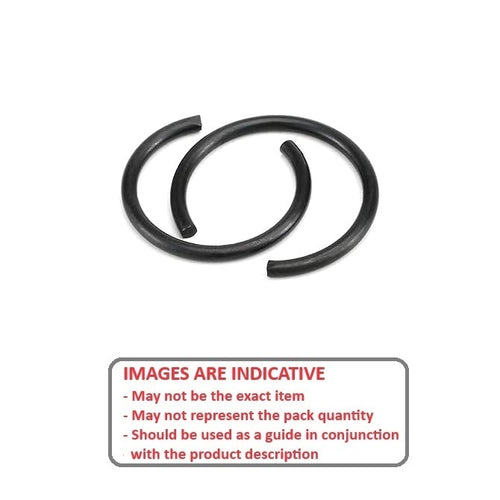

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

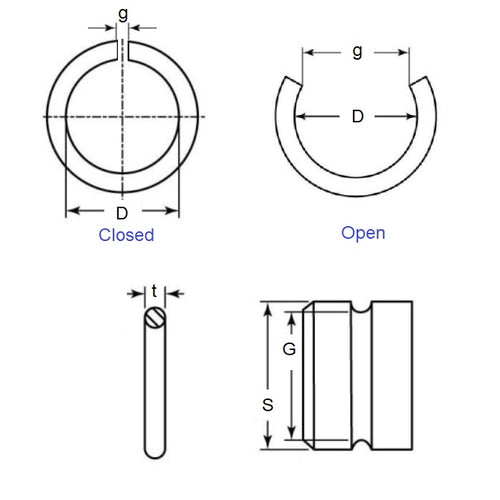

- Shaft Diameter (Ds)
:
19.05
mm
(Equiv. 0.75 in.) - Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.) - Groove Dia. (Dg)
17.73
mm
+ /- 0.08
(Equiv. 0.698 in.) - Approx. Loose Circlip ID (A) 17.53 mm
- Radial Wall (S) min/max 17.73 mm
- Groove Width (W) 2.21 mm
- Free Outside Dia (Dr) 21.85
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-431
- Arcon XRO-431
- NoCor XRO-431
- 200431
- XRO431
- WRE0191SRHO
