W0682-T-089-070-W3-C - Datasheet
MBA
Category Information

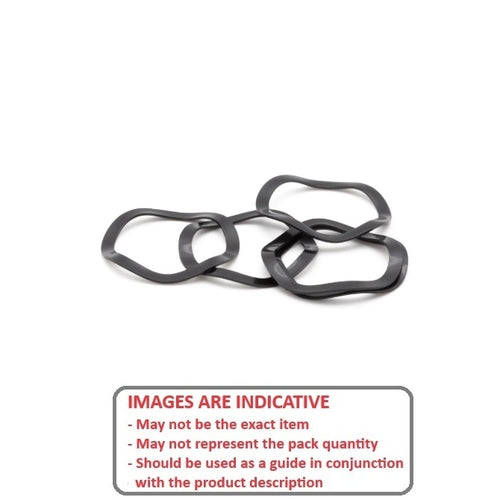

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.

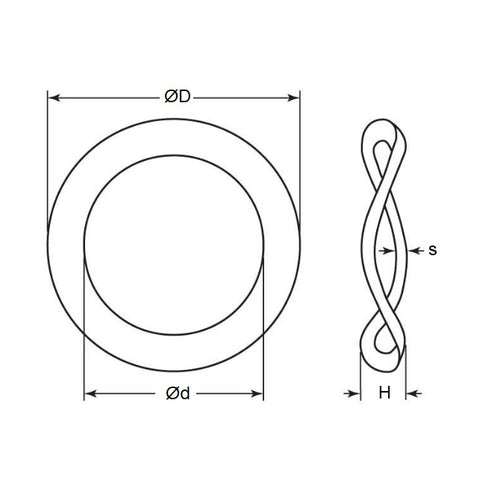

Product Data
- Nominal Inside Diameter (d)
:
68.20
mm
+0.8 / +1.5
(Equiv. 2.685 in.) - Nominal Outside Diameter (D)
88.50
mm
-0.4 / -1.1
(Equiv. 3.484 in.) - Nom. Height (H)
7.00
mm
(Equiv. 0.276 in.) - Thickness (s) 0.60 mm
- Info Suits OD of 6913, 6011, 6210, 6308, and 6406 Bearings
- Type 3 Wave
- Nominal Screw Size M67, 2.5/8
- Material Carbon Spring Steel - Phosphate Coated
Product Compliance and Data
Additional Resources
Cross References
- Misumi® BWW-6308
- Ochiai® BWW-6308
