W0573-T-078-070-W3-C - Datasheet
MBA
Category Information

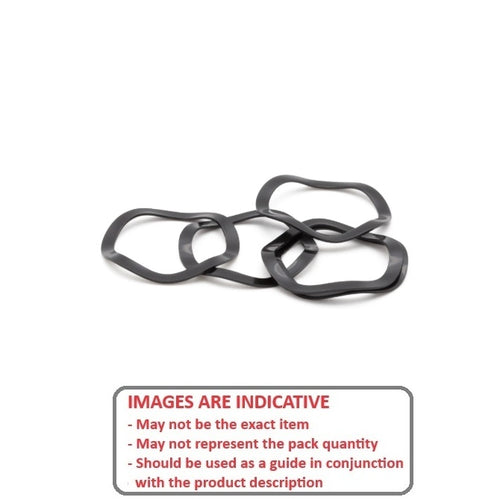

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data

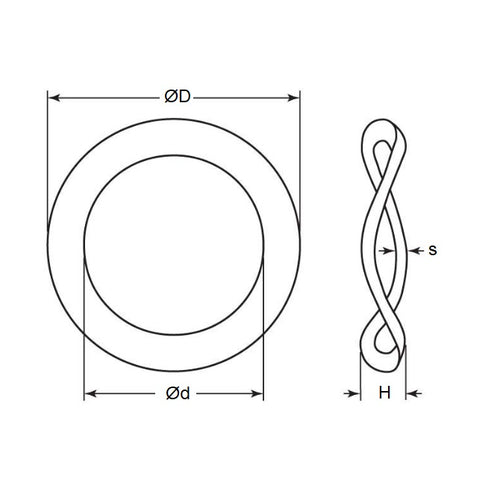

- Nominal Inside Diameter (d)
:
57.30
mm
-0.00 / +0.10
(Equiv. 2.256 in.) - Nominal Outside Diameter (D)
77.80
mm
-0.10 / +0.00
(Equiv. 3.063 in.) - Nom. Height (H)
7.00
mm
-0.12 / +0.00
(Equiv. 0.276 in.) - Thickness (s) 0.50 mm
- Info Suits OD of 6208, and 6307 Bearings
- Type 3 Wave
- Nominal Screw Size M57
- Material Carbon Spring Steel
