W0395-T-051-050-W3-C - Datasheet
MBA
Category Information

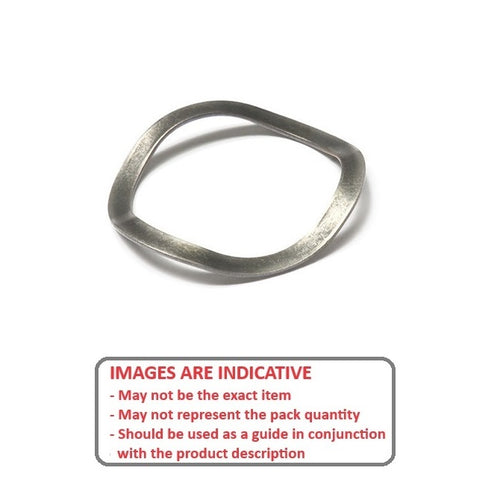

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data

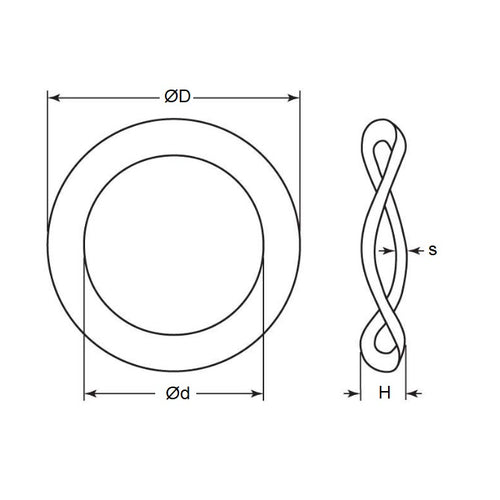

- Nominal Inside Diameter (d)
:
39.50
mm
(Equiv. 1.555 in.) - Nominal Outside Diameter (D)
50.80
mm
(Equiv. 2 in.) - Nom. Height (H)
5.00
mm
(Equiv. 0.197 in.) - Thickness (s) 0.30 mm
- Type 3 Wave
- Nominal Screw Size M39, 1.1/2
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® W-38
- Ochiai® W-38
