W0300-T-039-035-W3-C-ECO - Datasheet
MBA
Category Information

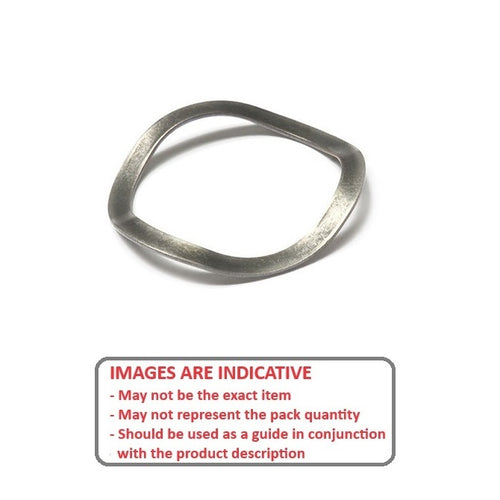

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data

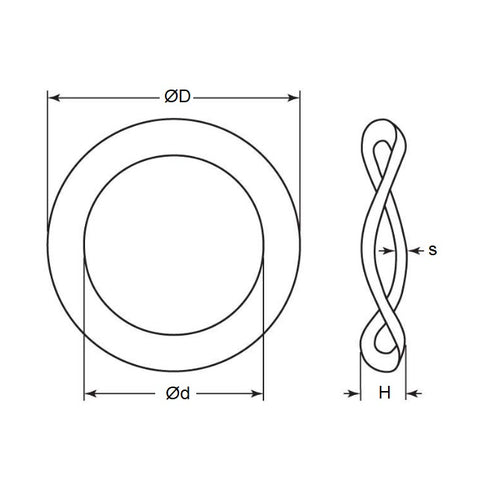

- Nominal Inside Diameter (d)
:
30.00
mm
+ 0.1 / + 1.2
(Equiv. 1.181 in.) - Nominal Outside Diameter (D)
39.00
mm
- 0.1 / - 1.0
(Equiv. 1.535 in.) - Nom. Height (H) 3.50 mm
- Thickness (s) 0.50 mm
- Info Suits OD of RLS5, MR3922, 6203, and MR4020 Bearings
- Type 3 Wave
- Nominal Screw Size M30, 1.3/16
- Material Carbon Spring Steel Self Finish
