W0122-T-018-025-W3-C - Datasheet
MBA
Category Information

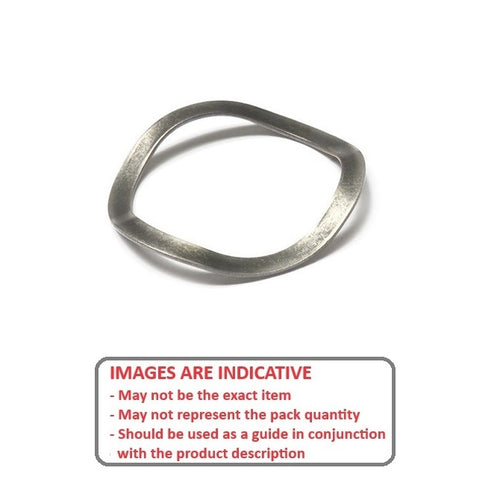

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data

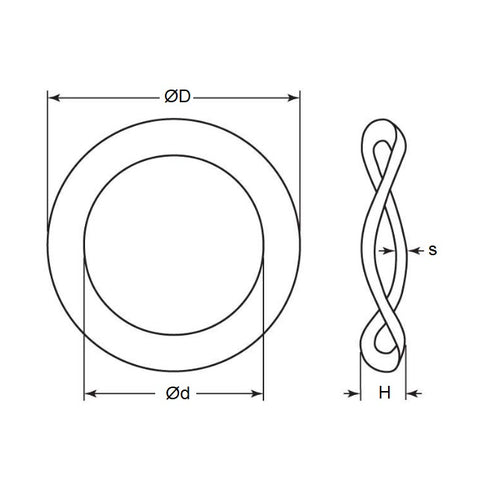

- Nominal Inside Diameter (d)
:
12.20
mm
+0.5 / +1.0
(Equiv. 0.48 in.) - Nominal Outside Diameter (D)
18.10
mm
-0.3 / -0.7
(Equiv. 0.713 in.) - Nom. Height (H)
2.50
mm
(Equiv. 0.098 in.) - Thickness (s) 0.20 mm
- Info Suits OD of 698, 607, 626, and 635 Bearings
- Type 3 Wave
- Nominal Screw Size M12
- Material Carbon Spring Steel - Phosphate Coated
Product Compliance and Data
Additional Resources
Cross References
- Misumi® BWW-626
- Ochiai® BWW-626
