W0100-T-020-016-W3-S2 - Datasheet
MBA
Category Information

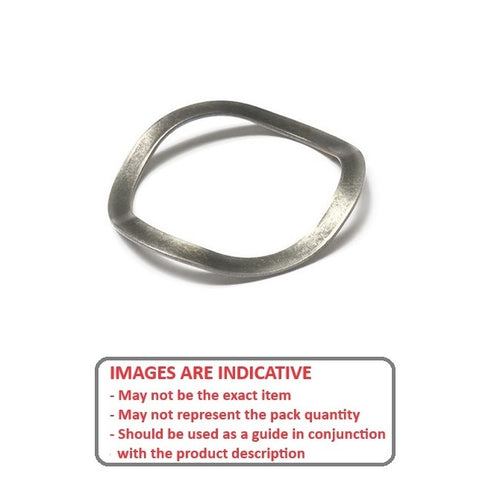

Washers - Spring - 3 Wave - 302 Stainless Steel302 Stainless Steel 3 Wave Spring Washers. 300 grade stainless, 3 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

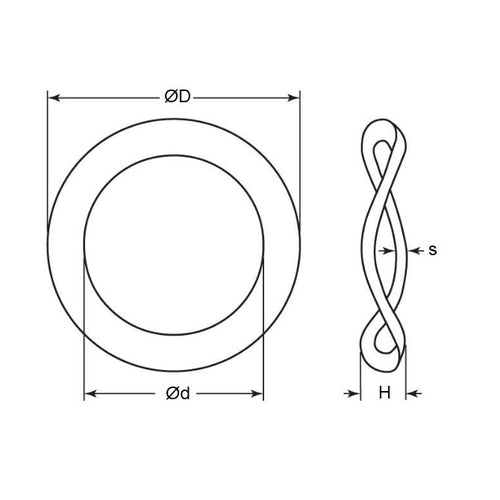

- Nominal Inside Diameter (d)
:
10.00
mm
(Equiv. 0.394 in.) - Nominal Outside Diameter (D)
19.60
mm
(Equiv. 0.772 in.) - Nom. Height (H)
1.63
mm
+/-0.08
(Equiv. 0.064 in.) - Thickness (s) 0.55 mm
- Type 3 Wave
- Nominal Screw Size M10, 3/8
- Actual ID (Ref) 10.5 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- MD4463MXP196X055
