GAS32RS - Datasheet

MBA

Category Information

Gas Springs - Assembly End Fittings

Assembly End Fittings Gas Springs. Assembly end fittings for Gas springs/struts.

    Product Data

    • Type : Steel Ball Joint
    • Fits Body Diameter 23.11 mm
      (Equiv. 0.91 in.)
    • Internal Thread Size M8 x 1.25
    • Center of Eye (F) 30.00 mm
    • Thread Length (J) 16.00 mm
    • Eye Hole/Thread size(E/H) M8 x 1.25 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS-32
      • GAS32
      View full details

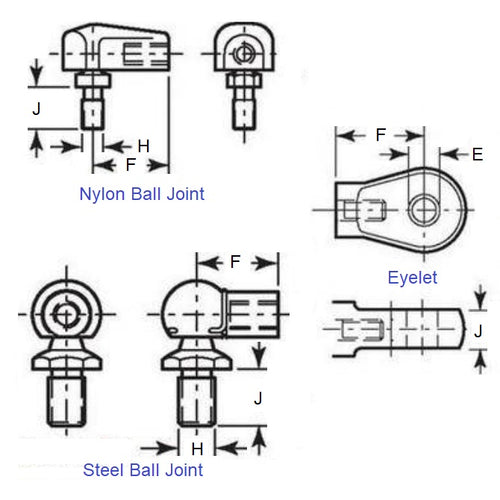

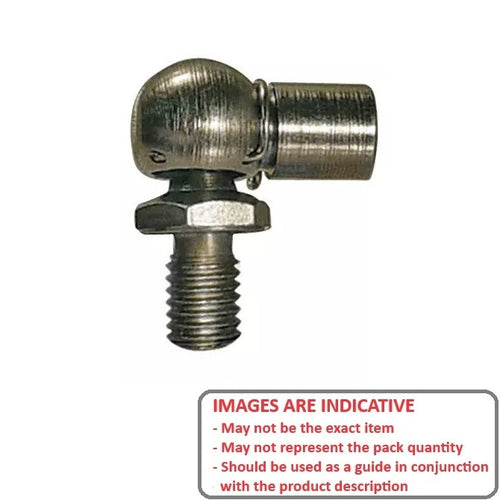

      GAS32RSDiagramGAS32RSImage
