GAS30RS - Datasheet

MBA

Category Information

Gas Springs - Assembly End Fittings

Assembly End Fittings Gas Springs. Assembly end fittings for Gas springs/struts.

    Product Data

    • Type : Steel Ball Joint
    • Fits Body Diameter 18.03 mm
      (Equiv. 0.71 in.)
    • Internal Thread Size M6 x 1.0
    • Center of Eye (F) 18.00 mm
    • Thread Length (J) 12.00 mm
    • Eye Hole/Thread size(E/H) M8 x 1.25 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS30
      • GAS-30
      View full details

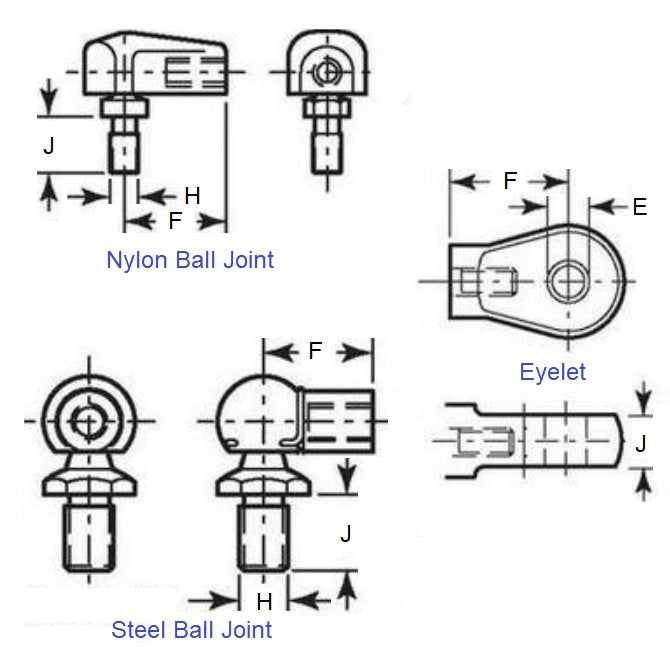

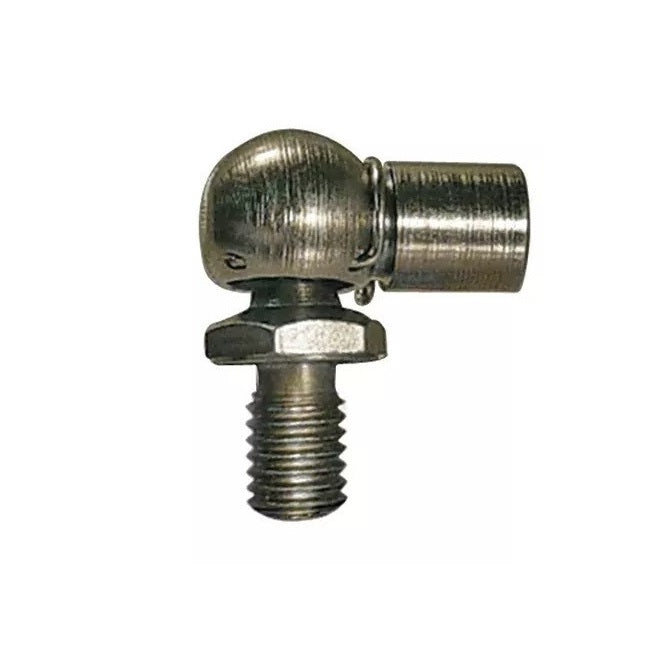

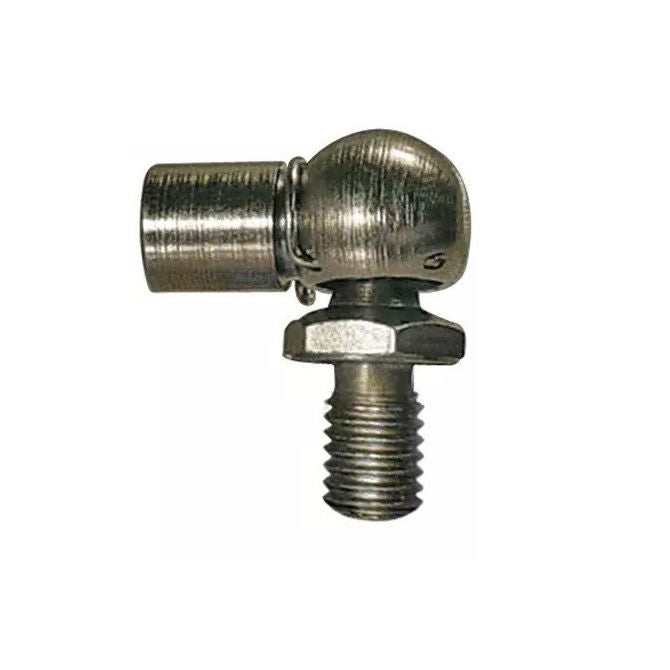

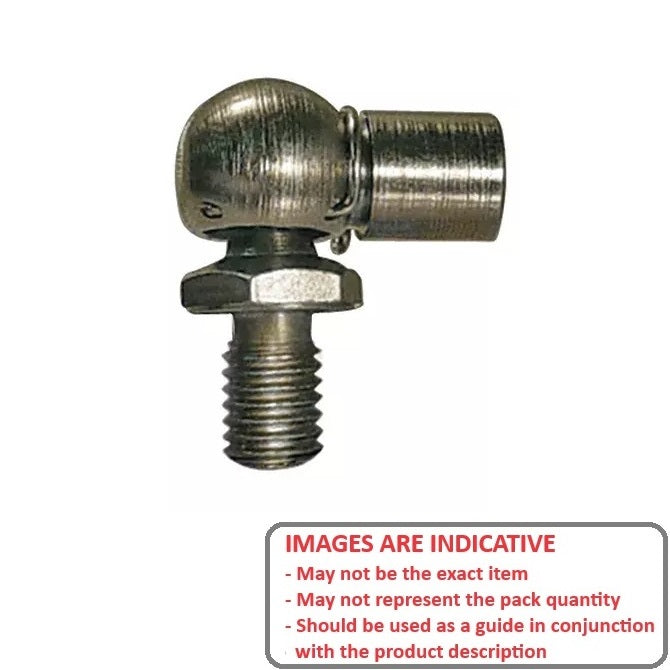

      GAS30RSDiagramGAS30RSImage
