SS079F-0381-CZ - Datasheet
MBA
Category Information

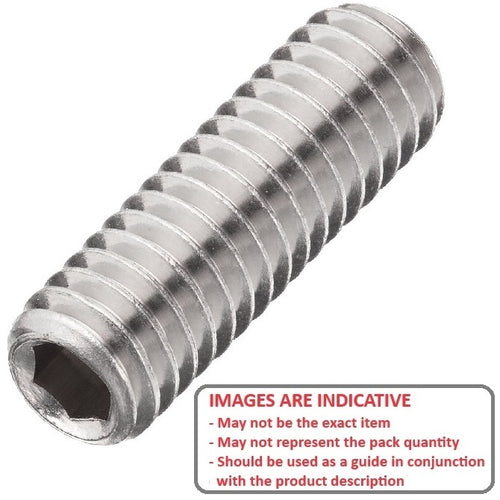

Socket Set Screws - Standard Cup Point - Zinc Plated DIN916Zinc Plated DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.
- Socket driven grub screw with a standard cup point.
Product Data

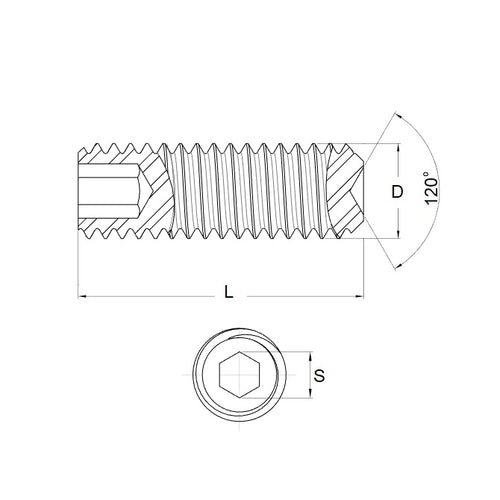

- Thread Size : 5/16-24 UNF (7.94mm)
- Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Type Standard Cup Point
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Finish Zinc Plated
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 5-16FX1.1-2ASCZ
- 516FX112ASCZ
