SS015F-0016-AS - Datasheet

MBA

Product Data

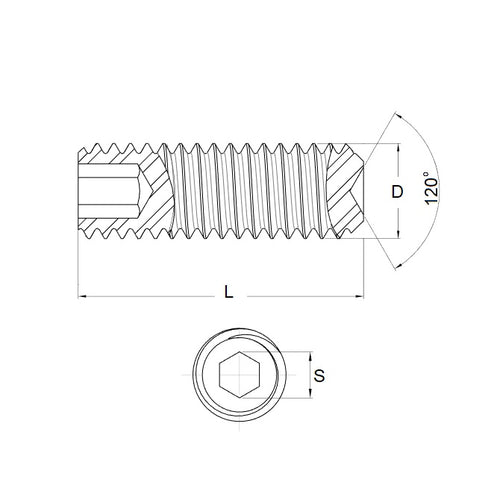

• Thread Size : 0-80 UNF (1.52mm)
• Thread Length (L) 1.6 mm
  (Equiv. 0.063 in.)
• Type Standard Cup Point
• Hex Key Size 0.70 mm
• Pitch 0.318 mm
• Threads Per Inch 80 TPI
• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91375A050
• Small Parts SSAS-080-1
• SSAS0801
• A9Q17008002
• A9Q17-008002
