Miniature Bearings Australia
SS095C-0381-S6 - Datasheet
MBA
Category Information

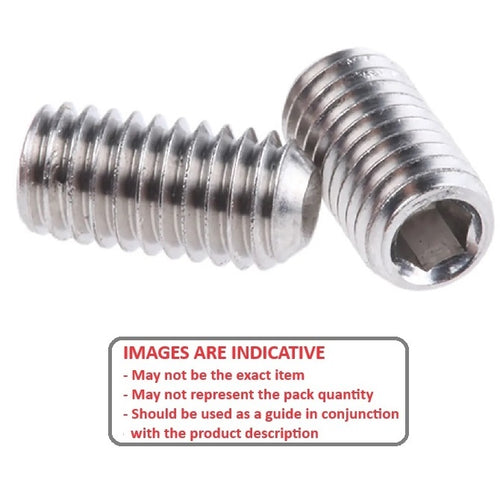

Socket Set Screws - Standard Cup Point - 316 Stainless Steel DIN916316 Stainless Steel DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.
- Socket driven grub screw with a standard cup point.
Product Data

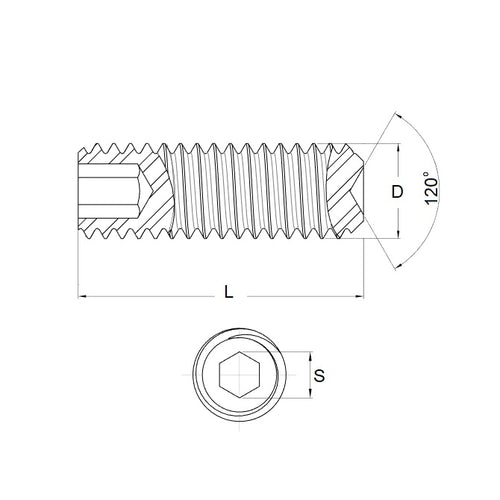

- Thread Size : 3/8-16 UNC (9.53mm)
- Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Type Standard Cup Point
- Hex Key Size 4.76 mm (3/16)
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 3-8Cx1.1-2SSC6
- 92313A421
- 38Cx112SSC6
