SS050M-0080-AS-BT - Datasheet

MBA

Category Information

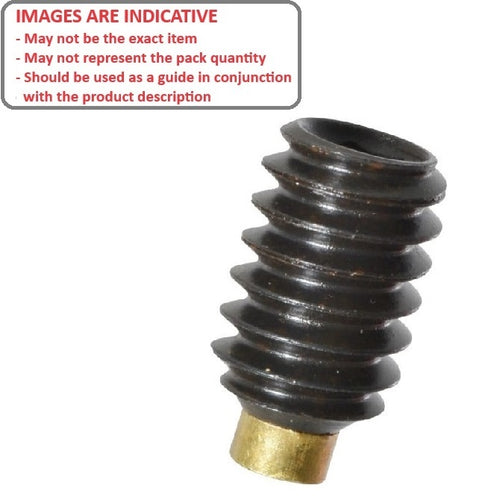

Socket Set Screws - Brass Tipped - Alloy Steel

Alloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.

  • Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
  • Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
  • Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Thread Length (L) 8.0 mm
    (Equiv. 0.315 in.)
  • Type Brass Tipped
  • Overall Length (L + L1) 8.5 mm
  • Tip Diameter (d) 3.0 mm
  • Tip Length (L1) 0.5
  • Hex Key Size 2.50 mm
  • Pitch 0.800 mm
  • Threads Per Inch 31.75 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • 94085A122
  • Misumi SBCP5-8
  • GN.13811
  • SBCP58
