WRI-0921-LS-O - Datasheet
MBA
Category Information

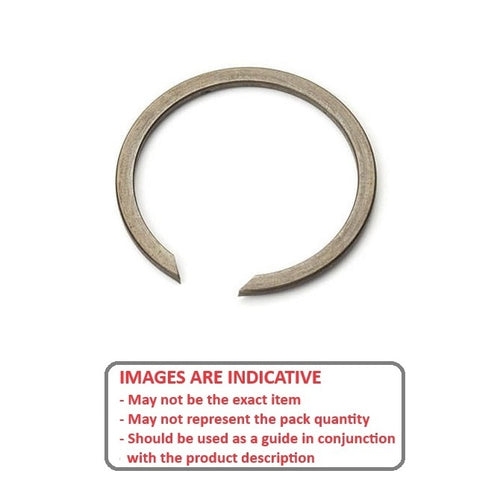

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data

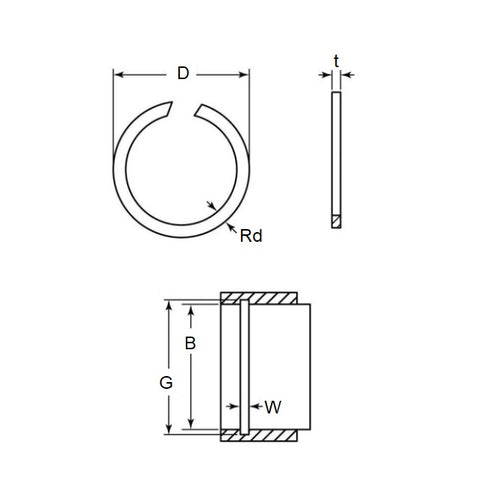

- Housing Bore (B)
:
92.08
mm
(Equiv. 3.625 in.) - Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.) - Groove Dia. (Dg)
95.83
mm
+/- 0.15
(Equiv. 3.773 in.) - Approx. Loose Circlip OD (Dr) 97.31 mm + 2.00 / - 0.00
- Section (Rd) 6.35 mm +/- 0.13
- Groove Width (W) 3.05 mm
- Approx. Loose Clip ID 84.61
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-362
- NoCor UHB-362
- Rotorclip UHB-362
- WRI0921SRO
- UHB362
- NAN362
