WRI-0222-LS-O - Datasheet
MBA
Category Information

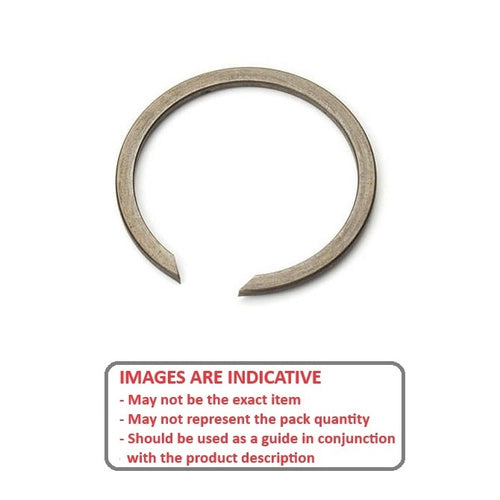

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar

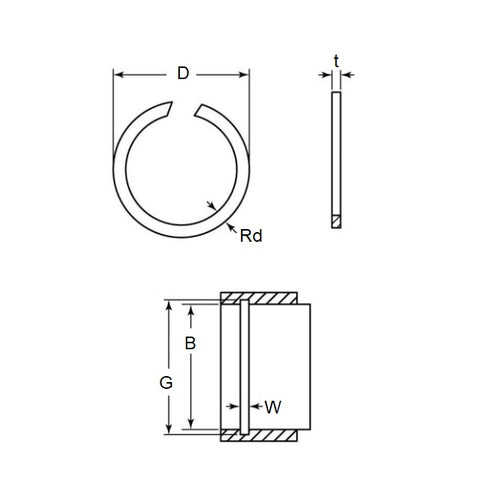

Product Data
- Housing Bore (B)
:
22.23
mm
(Equiv. 0.875 in.) - Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.) - Groove Dia. (Dg)
23.34
mm
+/- 0.08
(Equiv. 0.919 in.) - Approx. Loose Circlip OD (Dr) 23.72 mm + 0.79 / - 0.00
- Section (Rd) 1.58 mm +/- 0.08
- Groove Width (W) 1.17 mm
- Approx. Loose Clip ID 20.56
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-087
- NoCor UHB-087
- Rotorclip UHB-087
- WRI0222SRO
- UHB087
- NAN087
